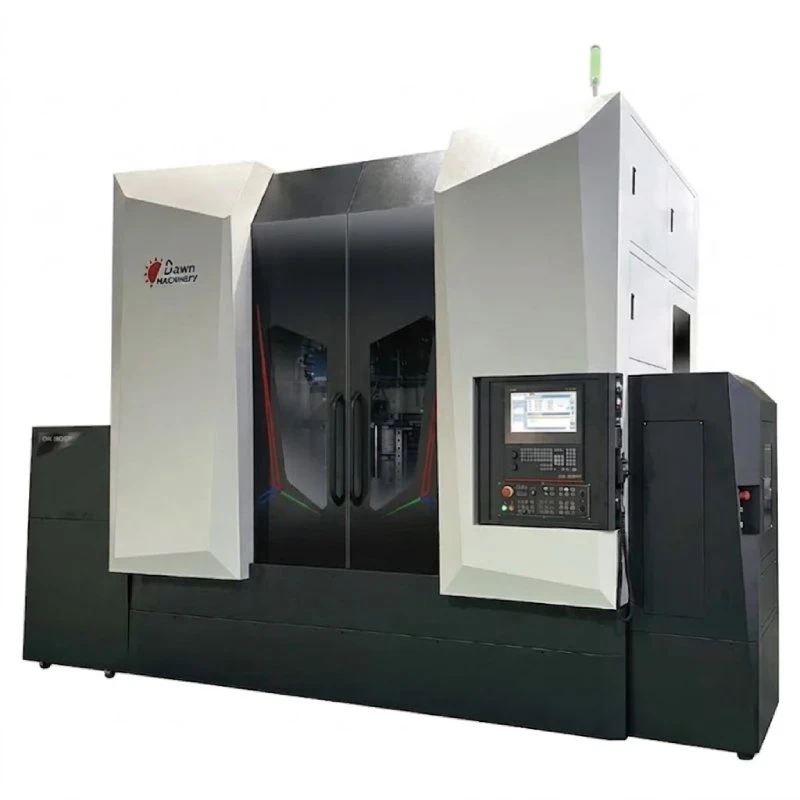

Single spindle without ATC

Single spindle without ATC

Add to Inquiry

Specifications

Machine Features

High precision, high stability, and optimal operating space; without issues from gravity.

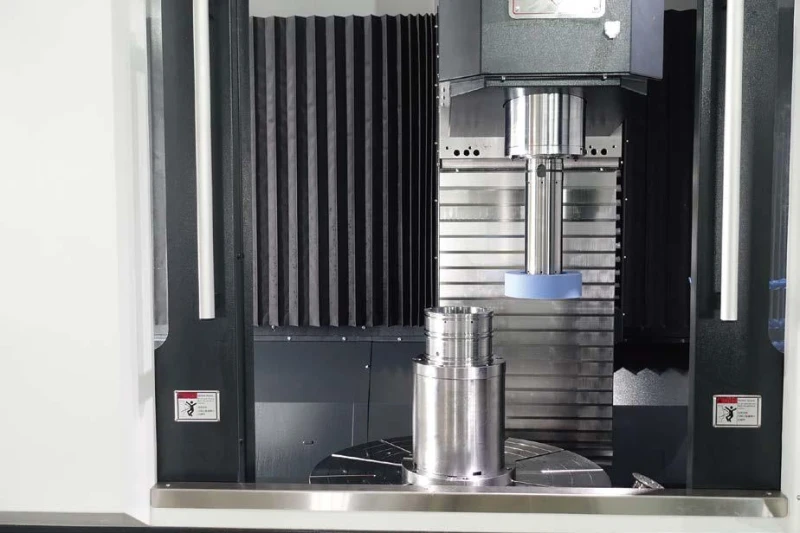

Suitable for heavy and non-cylindrical workpieces for inner/outer diameter and end-face grinding.
Heavy workpieces can be fixed on the fixture and hanging by crane.
Gantry structure ensures excellent mechanical rigidity.
Fully enclosed guard with an oil mist collector to prevent oil mist leakage.
Flexible configuration with single or dual spindles, with or without an automatic tool changer.
Equipped with a 15" touchscreen interface using FANUC or Siemens controllers.
Conversational programming for easy operation—no need for manual programming.
Dual-spindle models can support high speed and low speed grinding wheels or a combination of vertical and horizontal spindles for high-efficiency machining.

Structural & Design Analysis

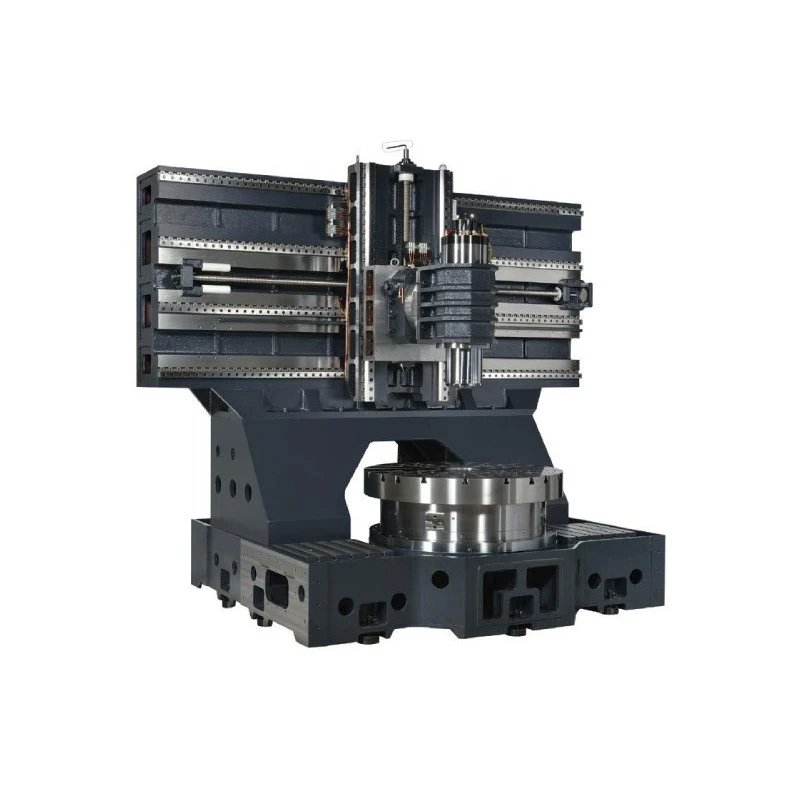

Gantry Bridge Structure

Gantry bridge structure engineered with minimal structural deformation. Mineral casting configuration is available as an option.

X-Axis Guideways

Advanced X-axis architecture utilizing four high-rigidity linear guideways to optimize precision dynamic travel.

Y-Axis Design (OPTIONAL)

Y-axis configuration boasting minimal physical extension, yielding highly maximized rigidity and exceptionally low structural vibration.

Premium Linear Motion Components

Employs top-tier Swiss, German, or Japanese linear guideways and high-accuracy ball screws. Linear motor drives are available as an option.

Spindle Isolation Guarding

The travel rails are systematically placed on top of the gantry bridge to completely isolate them from the cutting zone, completely avoiding any detrimental effects or contamination from grinding coolant.

Built-In High-Speed Spindle

Equipped with state-of-the-art HSK100 or HSK63 built-in spindle. Configurable with optional dual spindles, a combination vertical/horizontal layout, or a high-capability B-axis swivel head.

Ergonomic Low Center-Of-Gravity Base

Engineered as a rugged one-piece cast base (optional mineral casting). Features a specialized low center-of-gravity structural layout optimized explicitly for comfortable, ergonomic operation.

Hydrostatic Rotary Table

High-precision hydrostatic rotary table delivering exceptional rotational precision verified within 1μ. An optional built-in direct-drive (DD) system can be selected.

CONTROLLER

SIMENS lntegrated Operation HM

FANUC Integrated Operation HMI

Grind Setting

Grind Condition

Measure setting

Process List

Technical Specifications

Model Specification	DN-301	DN-501	DN-601	DN-801	DN-1201	DN-1601	DN-2001
Worktable diameter	Ø300mm	Ø500mm	Ø600mm	Ø800mm	Ø1200mm	Ø1600mm	Ø2000mm
Max swing of workpiece	Ø380mm	Ø680mm (Ø880mm)	Ø680mm (Ø880mm)	Ø880mm	Ø1280mm	Ø1780mm	Ø2180mm
Opening height* (Option)	550mm (650mm)	950mm (1050mm)	950mm (1050mm)	950mm (1050mm)	950mm (1250mm)	950mm (1250mm)	950mm (1250mm)
Grinding length for inner/ outer diameter	260mm	400mm	400mm	400mm (Customized available)	400mm (Customized available)	400mm (Customized available)	400mm (Customized available)
Max load of table	300kg	300kg	400kg	1,000kg	5,000kg	5,000kg	8,000kg
Worktable speed	300rpm	300rpm	250rpm	200rpm	100rpm	80rpm	60rpm
Worktable power	3KW	3KW	6.4KW	6.4KW	6.4KW	7.1KW	7.1KW
Spindle taper/speed	HSK63A / 15,000rpm	HSK100A / 10,000rpm	HSK100A / 10,000rpm	HSK100A / 10,000rpm	HSK100A / 10,000rpm	HSK100A / 10,000rpm	HSK100A / 10,000rpm
Spindle drive/ power	Built-in 7.5kw	Built-in 21kw	Built-in 21kw	Built-in 21kw	Built-in 21kw	Built-in 21kw	Built-in 21kw
Max grinding wheel diameter	Ø205mm	Ø255mm	Ø255mm	Ø255mm	Ø305mm	Ø305mm	Ø305mm
X axis travel	1000mm	1400mm	1400mm	1400mm	2400mm	2800mm	3200mm
Z axis travel	400mm	800mm	800mm	800mm	800mm (1100mm)	900mm (1100mm)	900mm (1100mm)
Standard linear scale axis	X/Z axes	X/Z axes	X/Z axes	X/Z axes	X/Z axes	X/Z axes	X/Z axes
Machine weight	5T	12T	12.5T	13T	18T	26T	38T
Floor space	3M x 3M	3M x 3.4M	3M x 3.4M	3.3M x 3.5M	4.5M x 3.8M	5.5M x 4.5M	5.5M x 5M
