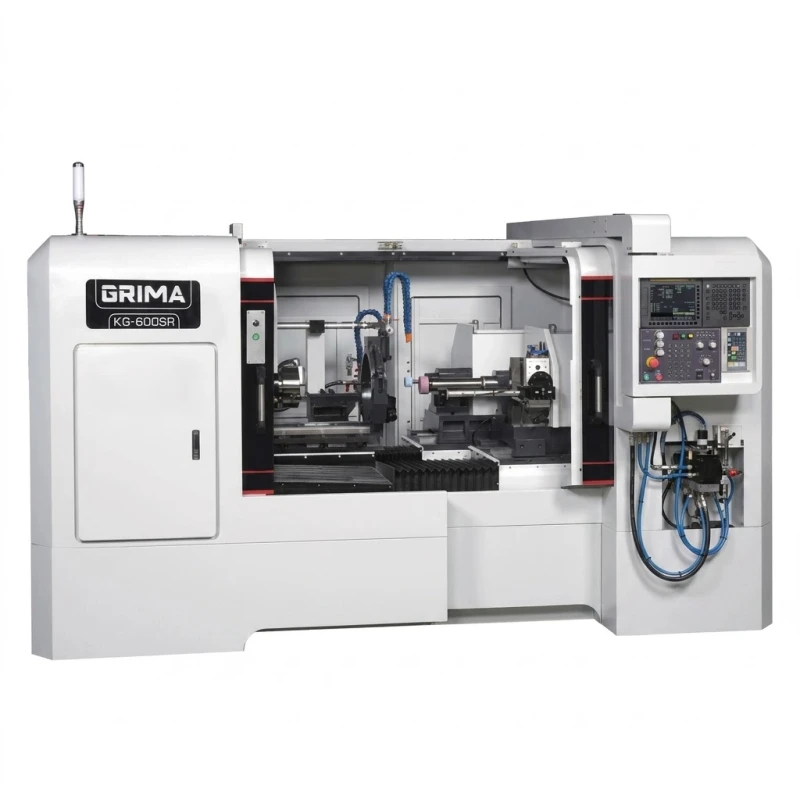

KG-600SR
KG-600SR
Max grinding length up to 400mm
Full splash guard
Fanuc controller
X, Y, Z axis stroke: 800/450/450mm
Specifications
Structural & Axis Features
X Axis Performance
Rigid roller type linear way with four linear ways and 12 blocks to ensure maximum axial rigidity and stability.
Equipped with a high rigidity A2-6 taper spindle providing excellent radial rigidity and stable thermal properties.

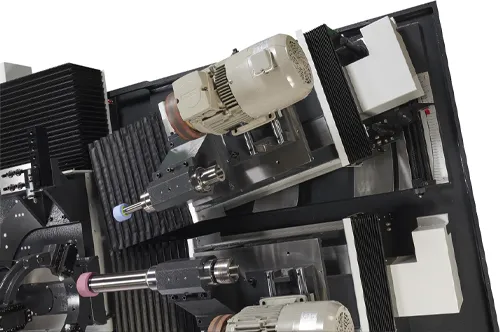

Y & Z Axis Configuration
Belt type grinding spindle with Ø90mm diameter. Supports various speed changes to increase grinding efficiency across different workpieces.
Features an air floating sliding way design for easy position adjustment based on operational needs.
Workhead Movement
Air floating sliding design allows for effortless movement of the workhead along the length of the workpiece, streamlining setup times.

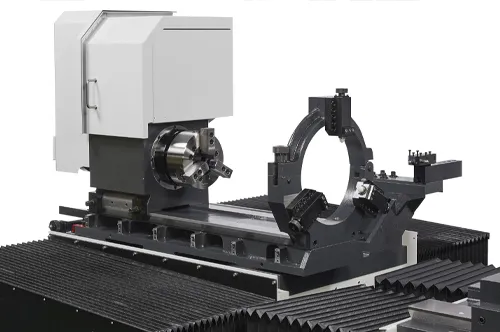

Steady Rest Stability
Designed specifically for long workpieces, providing essential stability during the grinding process to guarantee absolutely grinding quality.
Unique and Creative Design: Independent Y Axis Angle Adjustment
Thinking from the client's perspective to drive technology innovation. In the past, standard taper grinding relied on 2-axis simultaneous movement, which often caused friction on the ball screw after long-term usage, leading to a loss in accuracy.
To provide an ideal solution, we innovated an independent angle adjustment system for the Y axis to guarantee the long-term stability and accuracy of taper grinding.

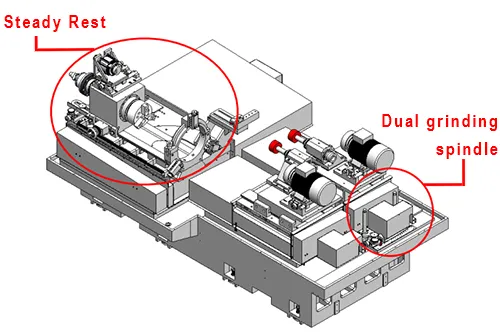

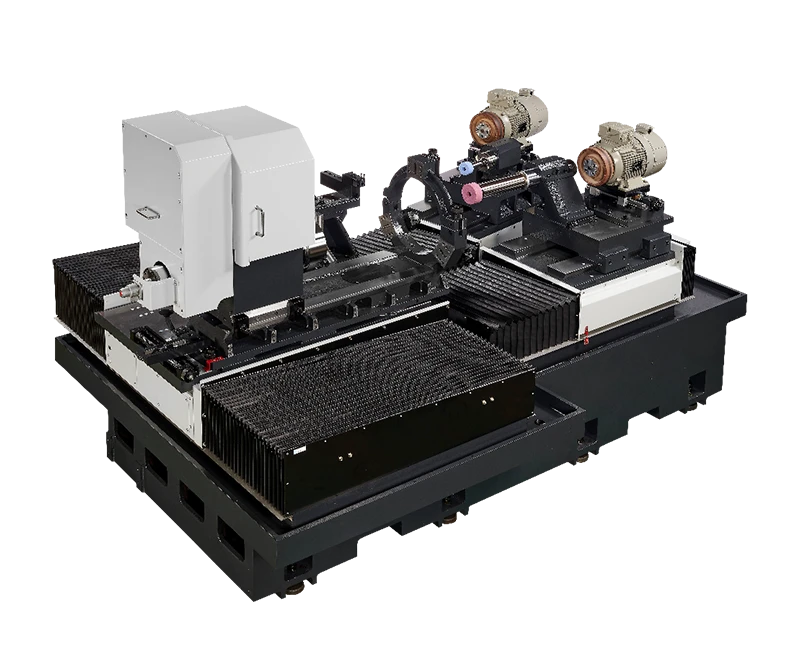

Structure

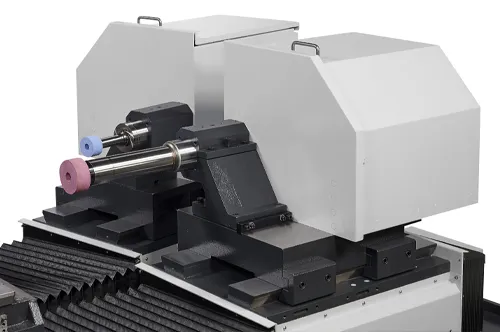

Spindle
Specifications
Machine Specifications
| KG-350SR | KG-410SR | KG-600SR | ||
|---|---|---|---|---|
| Working Capacity |
Grinding dia. range | Ø 4 ~ Ø 320 mm | Ø 4 ~ Ø 320 mm | Ø 4 ~ Ø 320 mm |
| Max. grinding depth | 350 mm | 410 mm | 400 mm | |
| Controller System |
Controller | FANUC 0i-TF | FANUC | FANUC |
| Workhead | Spindle speed | 0 ~ 1000 rpm | 0 ~ 1000 rpm | 0 ~ 1000 rpm |
| X-axis feed rate/ max. stroke | 8 M/min / 500 mm | 8 M/min / 650 mm | 8 M/min / 800 mm | |
| X-axis minimum display unit | 0.0001 mm | 0.0001 mm | 0.0001 mm | |
| Swiveling angle | 0° ~ +15° | -5° ~ +15° | 0° ~ +10° | |
| Worktable | Y-axis & Z-axis feed rate | Z : 6 M/min | Z : 6 M/min | 10/10 M/min |
| Y-axis & Z-axis max. stroke | Z : 700 mm | Z : 550 mm | 450+200 / 450+200 mm | |
| Y-axis & Z-axis minimum display unit | Z : 0.0001 mm | Z : 0.0001 mm | 0.0001 / 0.0001 mm | |
| Y-axis swiveling angle | - | - | 0° ~ +10° | |
| Distance from spindle center to the ground | 1100 mm | 1070 mm | 1100 mm | |
| Swing of working Table | Ø 380 mm | Ø 380 mm | Ø 380 mm | |
| Hydraulic System |
Oil Tank Capacity | 30 L | 40 L | 30 L |
| Cooling System |
Coolant Tank Capacity | 400 L | 400 L | 380 L |
| Motor | Hydraulic motor | 0.75 Kw (1HP) | 1.5 Kw (2HP) | 0.75 Kw (1HP) |
| Coolant pump motor | 0.75 Kw (1HP) | 0.37 Kw (1/2HP) | Machine : 0.37 Kw (1/2HP) Base : 0.37 Kw (1/2HP) |
|
| X-axis & Y-axis & Z-axis servomotor | X : 2.5 Kw / Z : 2.5 Kw | X : 2.5 Kw / Z : 2.5 Kw | X : 2.5 Kw / Y : 2.5 Kw / Z : 2.5 Kw | |
| Grinding wheel motor (kw) | Z : 4.0 (5HP) | Z : 2.2 (3HP) | Y : 4.0 (5HP) | |
| Workhead motor | - 1.8Kw(Brushless Servo) |
Z2 : 2.2 (3HP) 1.8Kw(Brushless Servo) |
Z : 4.0 (5HP) 1.8 Kw (Brushless Servo) |
|
| Others | Automatic lubricator | - | 4 L | 4 L |
| Machine dimension [LxWxH] -including accessories |
4300 x 2500 x2050 mm | 4200 x 3100 x2100 mm | 3500 x 3150 x1960 mm | |
| Machine Weight | 7500 kg | 8000 kg | 8300 kg | |
Standard Accessories Matrix
| STANDARD ACCESSORIES | KG-350SR | KG-410SR | KG-600SR |
|---|---|---|---|
| CNC Controller | ● | ● | ● |
| Inverter for X-axis workhead motor | ● | ● | ● |
| Inverter for Y-axis grinding spindle motor | - | - | ● |
| Inverter for Z-axis grinding spindle motor | ● | ● | ● |
| Inverter for Z2-axis grinding spindle motor | - | ● | - |
| Y-axis grinding spindle | - | - | ● |
| Z-axis grinding spindle | ● | ● | ● |
| Z2-axis grinding spindle | - | ● | - |
| Hydraulic chuck | ● | ● | ● |
| Hydraulic cylinder | ● | ● | ● |
| Tricolor alarm lamp | ● | ● | ● |
| Working lamp | ● | ● | ● |
| Tool box | ● | ● | ● |
| Automatic lubricator | ● | ● | ● |
| Coolant tank and pump | ● | ● | ● |
| Paper filter | ● | ● | ● |
| Magnetic separator | ● | ● | ● |
| Hydraulic tank and pump | ● | ● | ● |
| Internal heat radiation system inside cabinet | ● | ● | ● |
| Diamond Dresser | ● | ● | ● |
| Foundation bolts and blocks | ● | ● | ● |
| Mechanical, electrical operation manuals | ● | ● | ● |
| Fully-enclosed cover | ● | ● | ● |
| Semi-enclosed cover | - | - | - |
