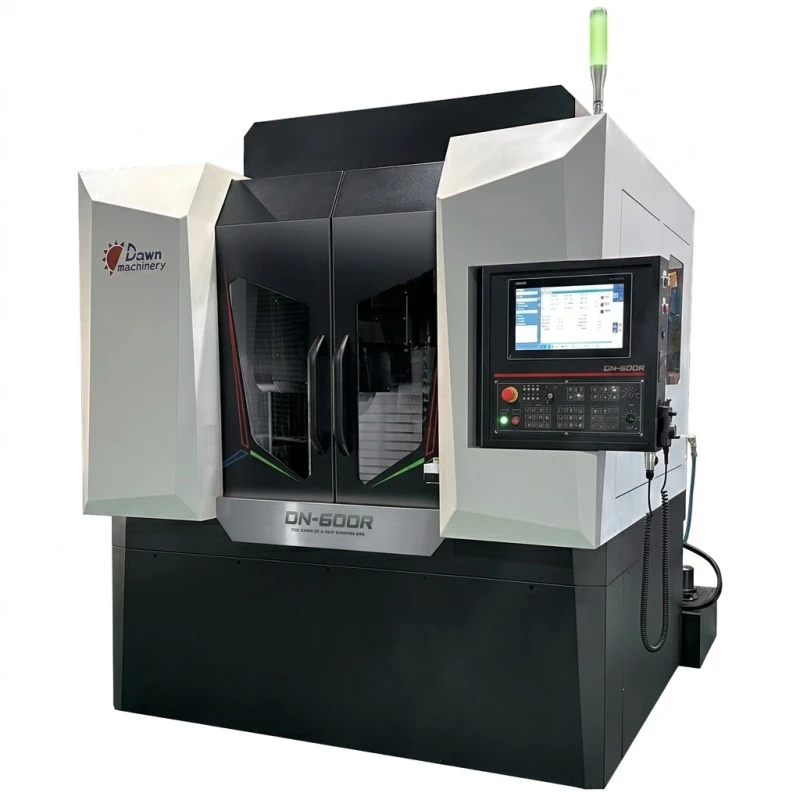

CNC Rotary Surface Grinder DN-600R Precision Grinding
Specifications
Key Features of Our CNC Rotary Surface Grinder
Conversational Interface CNC numerical control with a conversational interface for selecting grinding options (flat, concave, or convex).
Constant Linear Speed The rotary table speed can be set for grinding with a "constant linear speed" mode for uniform surface finish.

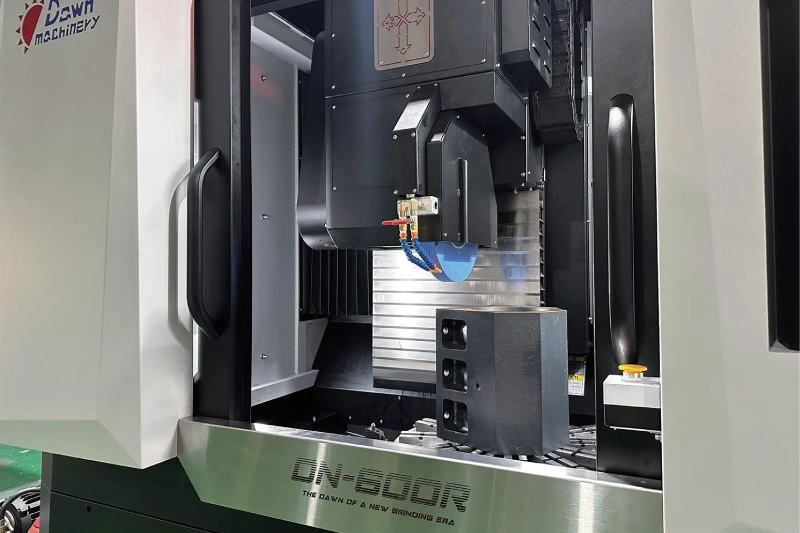

High Rigidity Gantry StructureHigh rigidity gantry structure, with the hydrostatic rotary table placed in a fixed position for easy precision maintenance. The rails and drive mechanisms are placed on the gantry bridge to avoid the effects from grinding coolant.
Max Workpiece Height Optimized vertical spacing design allowing a maximum workpiece height capacity of up to 400mm.
Hydrostatic Integrated DD Rotary Table Hydrostatic integrated DD (Direct-Drive) rotary table without belt transmission, ensuring extreme rotation accuracy consistently maintained within 1μ.
Technical Specifications
| Item | Model No. | DN-600R |
|---|---|---|
| WORK TABLE | Rotary table dimension | Ø600 mm |
| Max swing of workpiece | Ø650 mm | |
| Rotation speed | 5~500 rpm | |
| Max loading weight | 300 kg | |
| Structure | Hydrostatic | |
| Drive | Built-in Direct-drive | |
| Rotation accuracy | 1μ | |
| TRAVEL | Y axis travel (Up/down of wheel) | 450 mm |
| Z axis travel (Longitudinal movement) | 420 mm | |
| Distance from spindle center to rotary table | 600 mm | |
| SPINDLE | Rotation speed | 3000 rpm |
| Grinding wheel size (OD x T x ID) | Ø405 x 38 x Ø127 mm | |
| Motor | 10 HP | |
| FEED | Rapid speed (Y/Z) | 20/20 m/min |
| Cutting speed | 10 m/min | |
| Ball screw diameter and pitch | 40mm, P10 | |
| Guideway (Y/Z) | Roller type linear way (MRC35/MRA45) | |
| Axis servo motor power (Y/Z) | 3kw/3kw | |
| CONTROLLER | System | Siemens 828D |
| Monitor | 15" Touch monitor | |
| Grinding program | Conversational type | |
| OTHER | Floor space | 2900 x 2600 x 2800 mm |
| Machine weight | 5500 kgs |
Standard & Optional Accessories
Standard Accessories
- Working lamp
- Tri-color alarm lamp
- Coolant pump
- Magnetic separator
- Paper filter
- Oil chiller for hydrostatic rotary table
- Permanent electromagnetic chuck or electromagnetic chuck
- Diamond dresser with diamond pen
- Grinding wheel flange
Optional Accessories
- Oil mist collector
- Linear scale
- Semi-auto wheel balancing system
- Balancing stand and arbor
- Oil chiller for coolant tank
- Air condioner for electrical cabinet
- Anti-collision system
- Demagnetizer
- Transformer
- Voltage stabilizer
- CE norm
- Customized item
