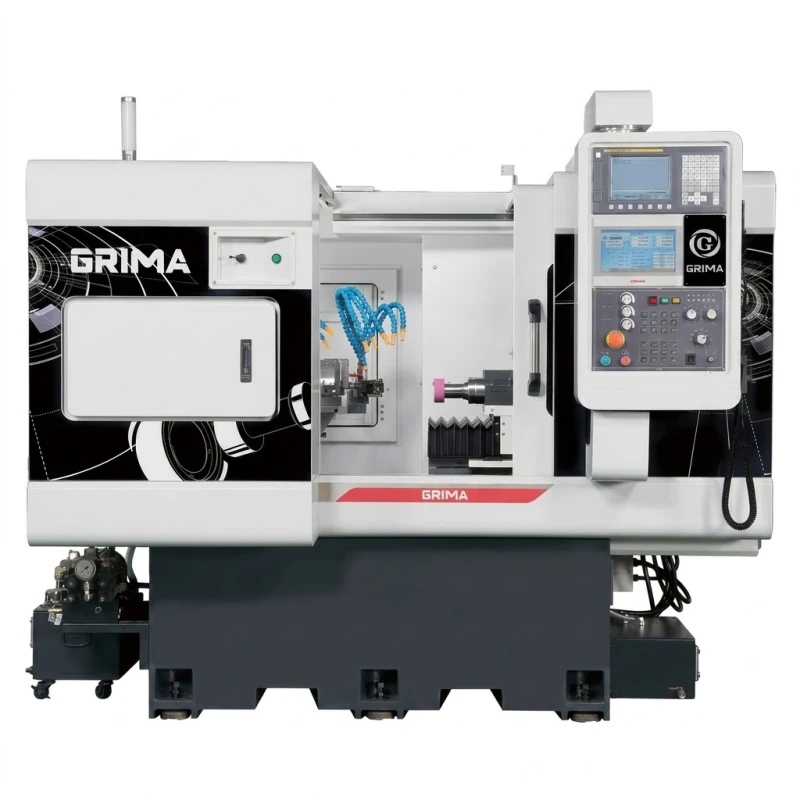

KG-150D
KG-150D

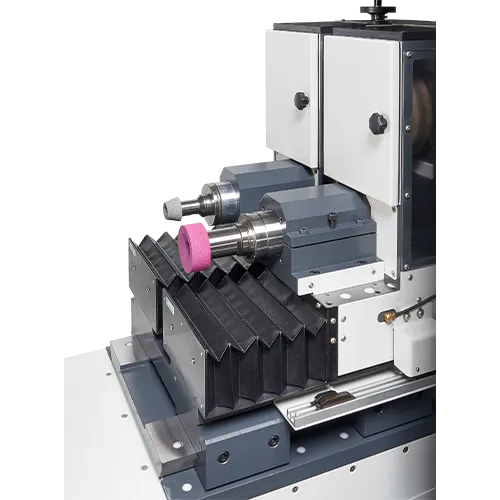

Dual grinding spindle
Available for end face grinding spindle
Max. grinding length 150mm
Fanuc controller
Full splash guard
X, Z axis stroke 350/400+100mm
Available for end face grinding spindle
Max. grinding length 150mm
Fanuc controller
Full splash guard
X, Z axis stroke 350/400+100mm
Specifications
Structural & Design Features

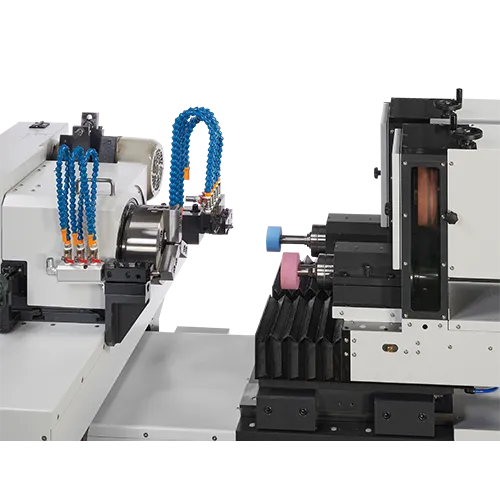

Innovative Slider Design
Innovative slider movement design, significantly reduces interference during grinding operations.
Hybrid Spindle Control
The grinding spindle is driven by hydraulic cylinder to position, while the extent of movement is controlled by servo motor.
High Speed Spindle
The speed of grinding spindle is available for 10,000 RPM to 50,000 RPM to suit various applications.
Enhanced Efficiency
Max grinding wheel diameter is up to 150mm, which greatly improves machining efficiency and stock removal.

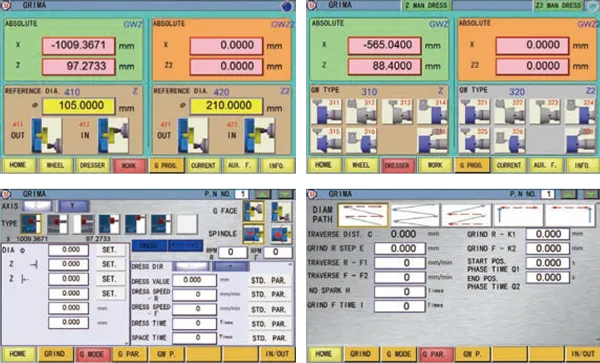

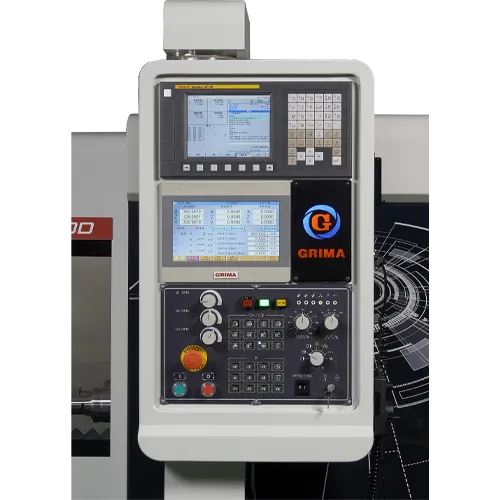

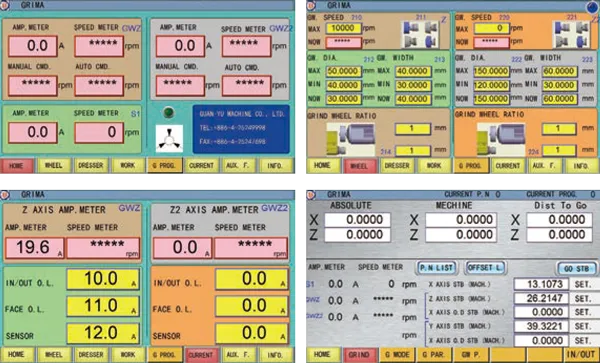

Operational Interface
Featuring a brand new conversational type operating interface. This system combines powerful functionality with easy operating logic, allowing users to program complex grinding tasks with minimal input.

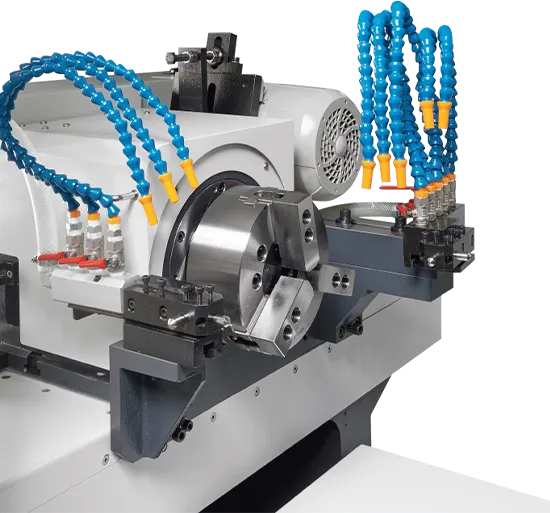

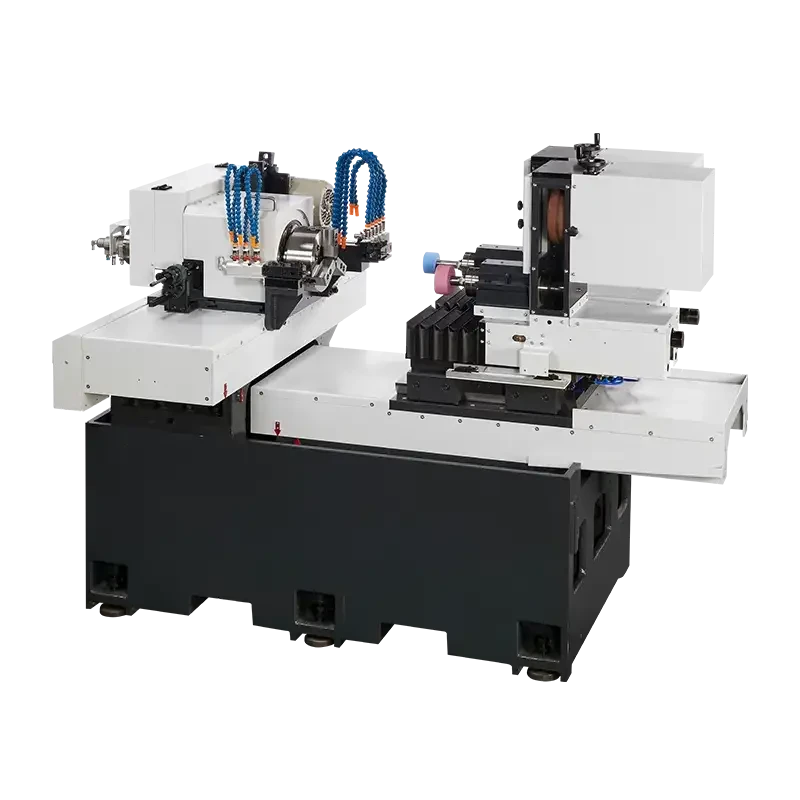

Structure

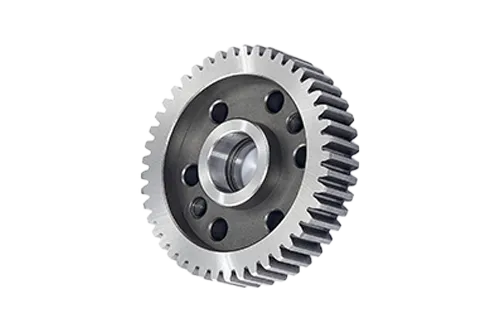

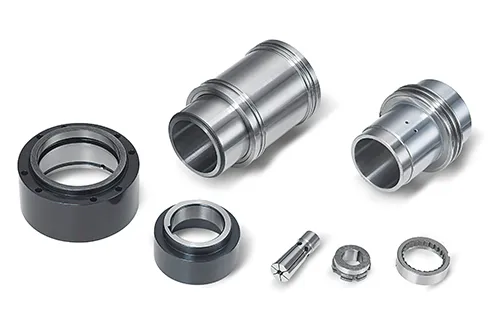

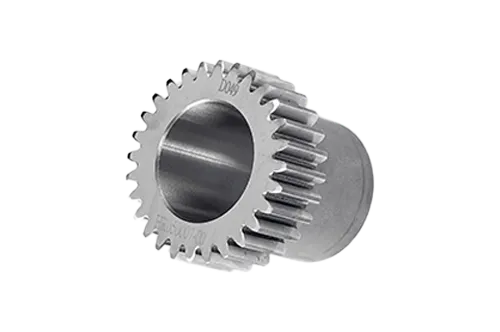

WORKPIECE
Specifications
Machine Specifications
| KG-150A | KG-150B | KG-150D | ||
|---|---|---|---|---|
| Working Capacity |
Grinding dia. range | Ø 4 ~ Ø 240 mm | Ø 4 ~ Ø 200mm | Ø 4 ~ Ø 240 mm |
| Max. grinding depth | 150 mm | 150 mm | 150 mm | |
| Max. swing range of workpiece | Ø 380 mm | Ø 300mm | Ø 300 mm | |
| Swing range within the water proof cover | Ø 300 mm | Ø 300mm | Ø 300 mm | |
| Controller System |
Controller | FANUC | FANUC | FANUC |
| Workhead | Spindle speed | 0 ~ 1000 rpm | 0 ~ 1000 rpm | 0 ~ 1000 rpm |
| X-axis feedrate / Max stroke | 10 M/min / 350 mm | 10 M/min / 350 mm | 10 M/min / 350 mm | |
| X-axis minimum display unit | 0.0001 mm | 0.0001 mm | 0.0001 mm | |
| Swiveling angle | -5° ~ +15° | -5° ~ +15° | -5° ~ +15° | |
| Worktable | Z-axis feed rate | 10 M/min | 10 M/min | 10 M/min |
| Z-axis max. stroke | 400+100 mm | 400+100 mm | 400+100 mm | |
| Z-axis minimum display unit | 0.0001 mm | 0.0001 mm | 0.0001 mm | |
| Distance from spindle center to the ground | 1060 mm | 1060 mm | 1060 mm | |
| Hydraulic System |
Oil Tank Capacity | 30 L | 30 L | 40 L |
| Cooling System |
Coolant Tank Capacity | 160 L | 160 L | 160 L |
| Motor | Hydraulic motor | 0.75 Kw (1HP) | 0.75 Kw (1HP) | 1.5 Kw (2HP) |
| Coolant pump motor | 0.18 Kw (1/4HP) | 0.18 Kw (1/4HP) | 0.18Kw(1/4HP) | |
| X-axis & Z-axis servomotor | X : 1.2 Kw / Z : 1.2 Kw | X : 1.2 Kw / Z : 1.2 Kw | X : 1.2 Kw / Z : 1.2 Kw | |
| Grinding wheel motor (kw) | Z : 2.2 , (3HP) - |
Z : 2.2 , (3HP) Z2 : 3.0(Built-in) |
Z : 2.2 , (3HP) Z2 : 2.2 , (3HP) |
|
| Spindle motor | 2.2 , (3HP) | 2.2 , (3HP) | 2.2 , (3HP) | |
| Others | Automatic lubricator | 2 L | 2 L | 2 L |
| Machine dimension [LxWxH]- including accessories | 2500 x 2300 x1750 mm | 2500 x 2300 x1750 mm | 2500 x 2400 x 1990 mm | |
| Machine Weight | 3000 kg | 3200 kg | 3200 kg | |
Standard Accessories Matrix
| STANDARD ACCESSORIES | KG-150A | KG-150B | KG-150D |
|---|---|---|---|
| CNC Controller | ● | ● | ● |
| Inverter for X-axis workhead motor | ● | ● | ● |
| Inverter for Z-axis grinding spindle motor | ● | ● | ● |
| Inverter for Z2-axis grinding spindle motor | - | ● | ● |
| Z-axis grinding spindle | ● | ● | ● |
| Z2-axis grinding spindle | - | ● | ● |
| Hydraulic chuck | ● | ● | ● |
| Hydraulic cylinder | ● | ● | ● |
| Tricolor alarm lamp | ● | ● | ● |
| Working lamp | ● | ● | ● |
| Tool box | ● | ● | ● |
| Automatic lubricator | ● | ● | ● |
| Coolant tank and pump | ● | ● | ● |
| Paper filter | ● | ● | ● |
| Magnetic separator | ● | ● | ● |
| Hydraulic tank with pump | ● | ● | ● |
| Internal heat radiation system inside cabinet | ● | ● | ● |
| Diamond dresser | ● | ● | ● |
| Leveling bolts and pads | ● | ● | ● |
| Mechanical, electrical operation manuals | ● | ● | ● |
| Fully-enclosed cover | - | ● | ● |
| Semi-enclosed cover | ● | - | - |
