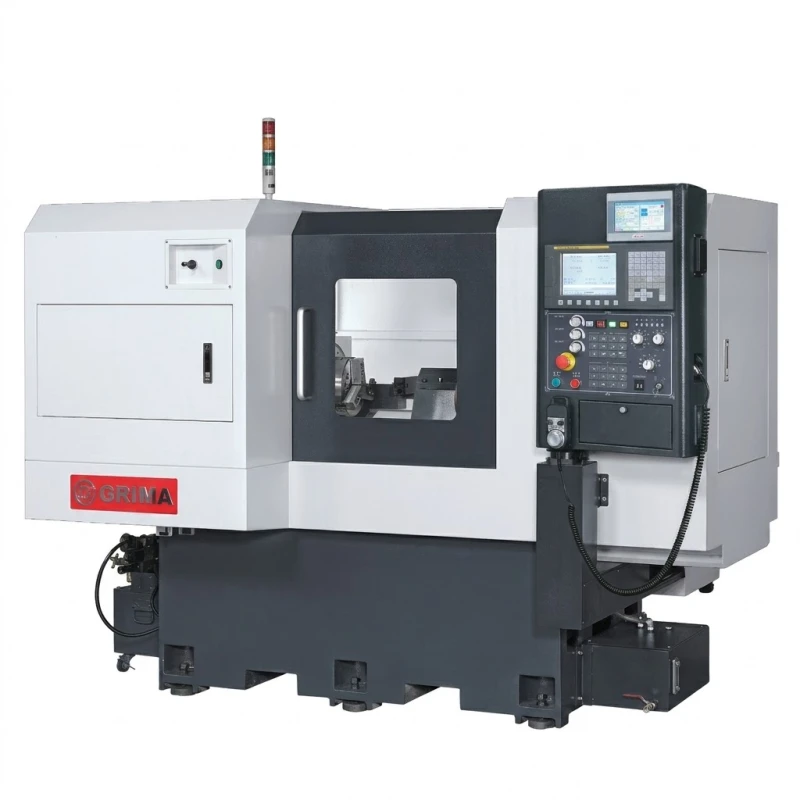

KG-150B
KG-150B
KG-150B
KG-150B

KG-150B

Dual grinding spindle
Available for end face grinding spindle
Max. grinding length 150mm
Fanuc controller
Full splash guard
X, Z axis stroke 350/400+100mm
Add to Inquiry

Specifications

Specifications

Specifications

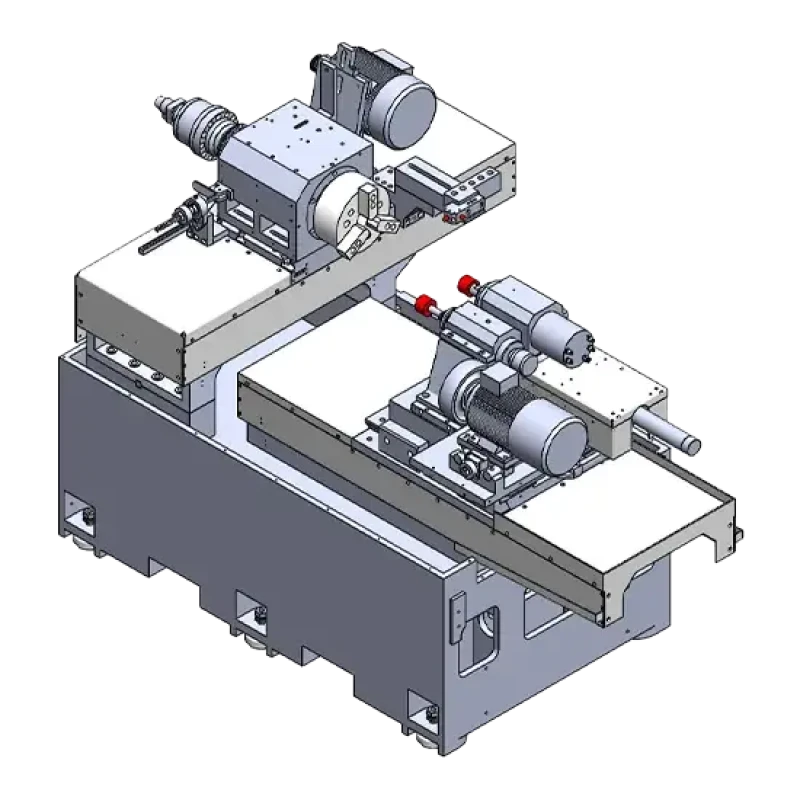

Structural Features

Linear ways & ball screws

High accuracy linear ways and C1 ball screw for X, Z axis, to guarantee ultra precision and rigidity.

Massive machine base

Oversized machine base with internal ribs running throughout each section based on Mechanics, featuring long term metallic rigidity and stability.

Top quality cast iron

Base structure applies to FC30 cast iron, with tempered and stress released to guarantee machining accuracy and stability.

Servo motor driven

X, Z axis are both driven by servo motor with min display 0.0001mm.

TOUCH-SENSING MONITOR

  • Control current under different grinding status
  • Grinding sensing
  • Easy for tool setting, compensation, and grinding wheel size monitoring

FANUC CONTROLLER

  • Powerful function to set up parameters for multiple faces grinding
  • Available to execute 16 faces grinding with 1 set up

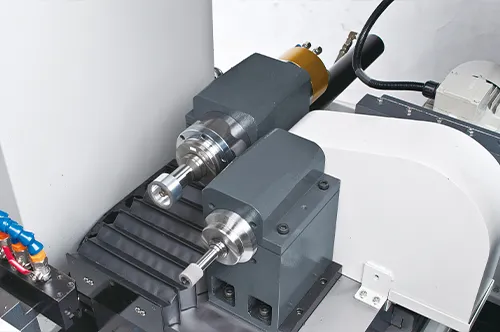

Structure

With ATC
Without ATC
Without ATC
Without ATC

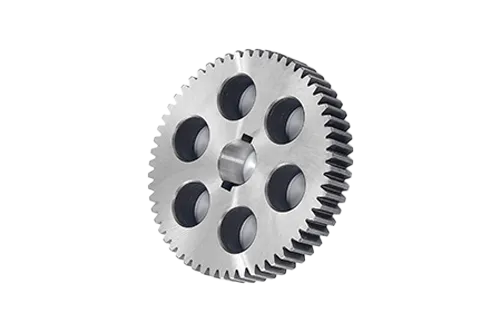

WORKPIECE

With ATC
Without ATC
Without ATC

Specifications

Machine Specifications

KG-150A KG-150B KG-150D
Working
Capacity		 Grinding dia. range Ø 4 ~ Ø 240 mm Ø 4 ~ Ø 200mm Ø 4 ~ Ø 240 mm
Max. grinding depth 150 mm 150 mm 150 mm
Max. swing range of workpiece Ø 380 mm Ø 300mm Ø 300 mm
Swing range within the water proof cover Ø 300 mm Ø 300mm Ø 300 mm
Controller
System		 Controller FANUC FANUC FANUC
Workhead Spindle speed 0 ~ 1000 rpm 0 ~ 1000 rpm 0 ~ 1000 rpm
X-axis feedrate / Max stroke 10 M/min / 350 mm 10 M/min / 350 mm 10 M/min / 350 mm
X-axis minimum display unit 0.0001 mm 0.0001 mm 0.0001 mm
Swiveling angle -5° ~ +15° -5° ~ +15° -5° ~ +15°
Worktable Z-axis feed rate 10 M/min 10 M/min 10 M/min
Z-axis max. stroke 400+100 mm 400+100 mm 400+100 mm
Z-axis minimum display unit 0.0001 mm 0.0001 mm 0.0001 mm
Distance from spindle center to the ground 1060 mm 1060 mm 1060 mm
Hydraulic
System		 Oil Tank Capacity 30 L 30 L 40 L
Cooling
System		 Coolant Tank Capacity 160 L 160 L 160 L
Motor Hydraulic motor 0.75 Kw (1HP) 0.75 Kw (1HP) 1.5 Kw (2HP)
Coolant pump motor 0.18 Kw (1/4HP) 0.18 Kw (1/4HP) 0.18Kw(1/4HP)
X-axis & Z-axis servomotor X : 1.2 Kw / Z : 1.2 Kw X : 1.2 Kw / Z : 1.2 Kw X : 1.2 Kw / Z : 1.2 Kw
Grinding wheel motor (kw) Z : 2.2 , (3HP)
-		 Z : 2.2 , (3HP)
Z2 : 3.0(Built-in)		 Z : 2.2 , (3HP)
Z2 : 2.2 , (3HP)
Spindle motor 2.2 , (3HP) 2.2 , (3HP) 2.2 , (3HP)
Others Automatic lubricator 2 L 2 L 2 L
Machine dimension [LxWxH]- including accessories 2500 x 2300 x1750 mm 2500 x 2300 x1750 mm 2500 x 2400 x 1990 mm
Machine Weight 3000 kg 3200 kg 3200 kg

Standard Accessories Matrix

STANDARD ACCESSORIES KG-150A KG-150B KG-150D
CNC Controller ● ● ●
Inverter for X-axis workhead motor ● ● ●
Inverter for Z-axis grinding spindle motor ● ● ●
Inverter for Z2-axis grinding spindle motor - ● ●
Z-axis grinding spindle ● ● ●
Z2-axis grinding spindle - ● ●
Hydraulic chuck ● ● ●
Hydraulic cylinder ● ● ●
Tricolor alarm lamp ● ● ●
Working lamp ● ● ●
Tool box ● ● ●
Automatic lubricator ● ● ●
Coolant tank and pump ● ● ●
Paper filter ● ● ●
Magnetic separator ● ● ●
Hydraulic tank with pump ● ● ●
Internal heat radiation system inside cabinet ● ● ●
Diamond dresser ● ● ●
Leveling bolts and pads ● ● ●
Mechanical, electrical operation manuals ● ● ●
Fully-enclosed cover - ● ●
Semi-enclosed cover ● - -
