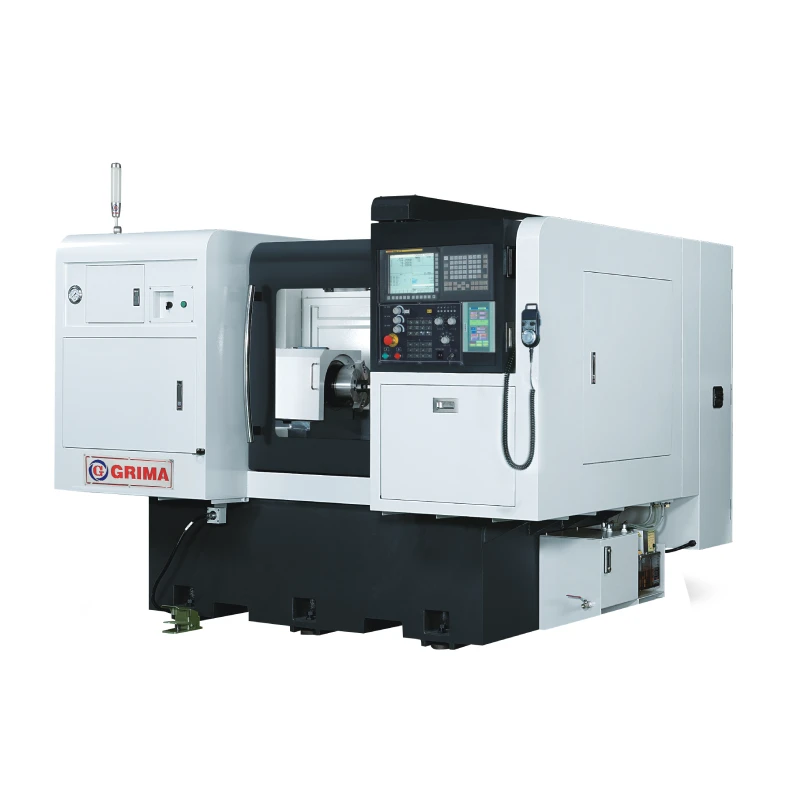

KG-500 External and Internal Cylindrical Grinding Machine
KG-500
Dual grinding spindle designed for advanced external and internal cylindrical grinding
Available for turning spindle
Max. grinding length: 200mm
Fanuc controller
Full splash guard
X, Y, Z axis stroke: 400 / 350+200 / 350+200mm
Available for turning spindle
Max. grinding length: 200mm
Fanuc controller
Full splash guard
X, Y, Z axis stroke: 400 / 350+200 / 350+200mm
Description

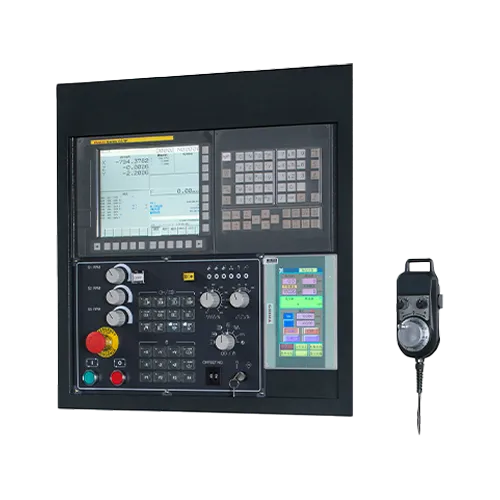

FANUC Controller
With powerful function to set up parameters for multiple faces grinding. Available to execute 16 faces grinding with 1 set up.
Touch-Sensing Monitor
Available to control current under different grinding status. Grinding sensing. Easy for tool setting, compensation and grinding wheel size monitoring.
Linear ways & ball screws
High accuracy linear ways and ball screw for X, Z axis, to guarantee ultra precision and rigidity.
Top quality cast iron
Base structure apply to FC30 cast iron, with tempered and stress released to guarantee machining accuracy and stability.
Massive machine base
Oversized machine base with internal ribs running throughout each section based on Mechanics, featuring long term metallic rigidity and stability.
Servo motor driven
X, Z axis are both driven by servo motor with min display 0.0001mm.

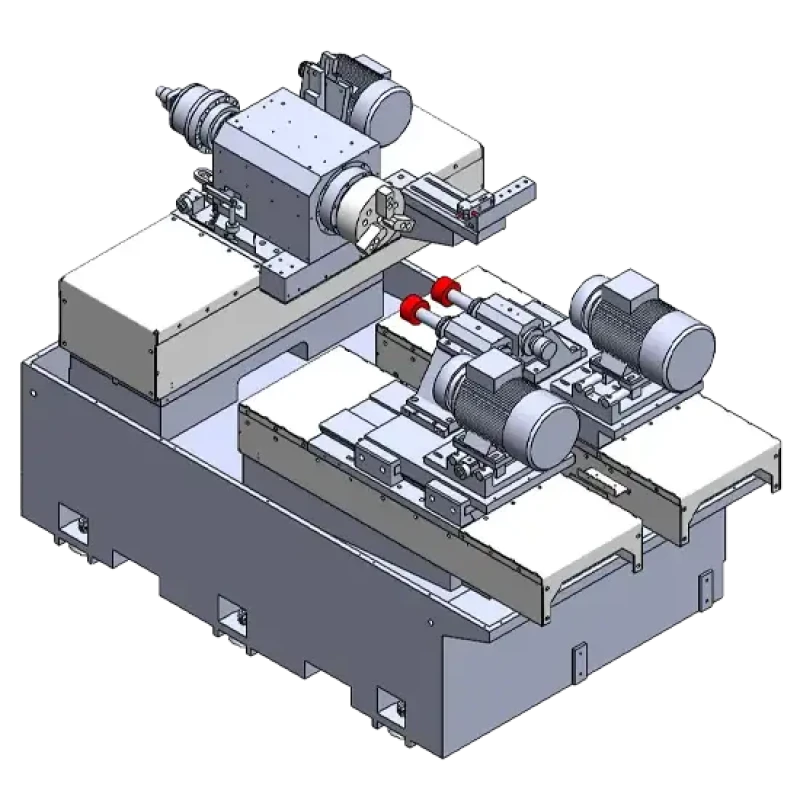

Structure

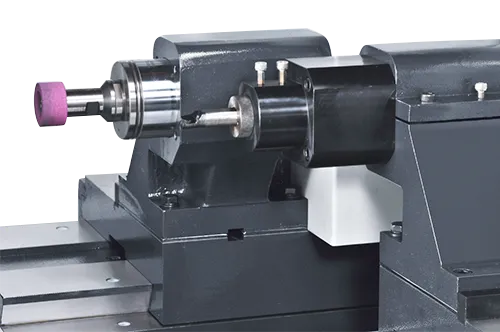

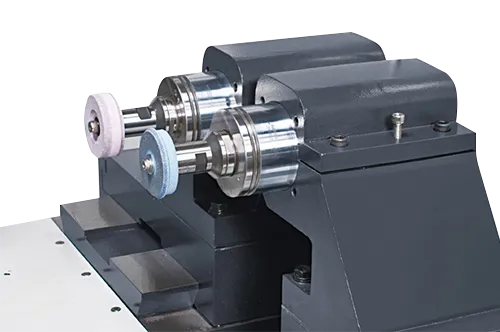

Spindle

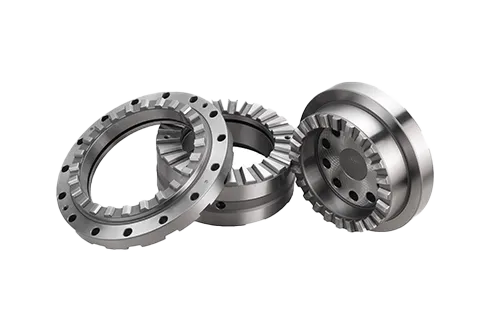

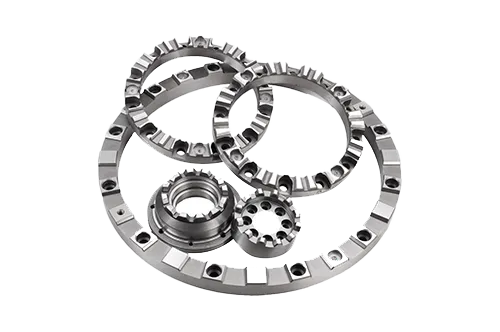

WORKPIECE
Specifications
Machine Specifications
| KG-500 | KG-500L | KG-500LE | KG-400IE | ||
|---|---|---|---|---|---|
| Working Capacity |
Grinding dia. range | Ø 4 ~ Ø 320 mm | Ø 4 ~ Ø 320 mm | Ø 4 ~ Ø 320 mm | Ø 4 ~ Ø 320 mm |
| Max. grinding depth | 200 mm | 200 mm | 200 mm | 200 mm | |
| Max. swing range of workpiece | Ø 450 mm | Ø 500 mm | Ø 480 mm | Ø 400 mm | |
| Swing range within the water proof cover | Ø 300 mm | Ø 300 mm | Ø 300 mm | Ø 300 mm | |
| Controller System |
Controller | FANUC | FANUC | FANUC | FANUC |
| Workhead | Spindle speed | 0 ~ 1000 rpm | 0 ~ 1000 rpm | 0 ~ 1000 rpm | 1000 rpm |
| X-axis feed rate/ max. stroke | 10 M/min / 400 mm | 10 M/min / 750 mm | 10 M/min / 750 mm | 10 M/min / 390 mm | |
| X-axis minimum display unit | 0.0001 mm | 0.0001 mm | 0.0001 mm | 0.0001 mm | |
| Swiveling angle | -5° ~ +30° | -5° ~ +30° | -5° ~ +30° | -5° ~ +15° | |
| Worktable | Y-axis & Z-axis feed rate | Y : 10 / Z : 10 M/min | Y : 10 / Z : 10 M/min | Y : 10 / Z : 10 M/min | Y : 10 / Z : 10 M/min |
| Y-axis & Z-axis max. stroke | Y : 350+200 / Z : 350+200 | Y : 320+200 / Z : 320+200 | Y : 320+150 / Z : 320+200 | Y : 350+150 / Z : 350+200 | |
| Y-axis & Z-axis minimum display unit | Y : 0.0001 / Z : 0.0001 | Y : 0.0001 / Z : 0.0001 | Y : 0.0001 / Z : 0.0001 | Y : 0.0001 / Z : 0.0001 | |
| Distance from spindle center to the ground | 1100 mm | 1100 mm | 1100 mm | 1100 mm | |
| Hydraulic System |
Oil Tank Capacity | 30 L | 30 L | 30 L | 30 L |
| Cooling System |
Coolant Tank Capacity | 250 L | 250 L | 250 L | 250 L |
| Motor | Hydraulic motor | 0.75 Kw (1HP) | 0.75 Kw (1HP) | 0.75 Kw (1HP) | 0.75 Kw (1HP) |
| Coolant pump motor | 0.18 Kw (1/4HP) | 0.37 Kw (1/2HP) | Cylindrical Wheel: 0.18 Kw (1/4HP) Machine: 0.37 Kw (1/2HP) |
Cylindrical Wheel: 0.18 Kw (1/4HP) Machine: 0.37 Kw (1/2HP) |
|
| X-axis & Y-axis & Z-axis servomotor | X : 1.6 / Y : 1.6 / Z : 1.6 | X : 1.6 / Y : 1.6 / Z : 1.6 | X : 1.6 / Y : 1.6 / Z : 1.6 | X : 1.6 / Y : 1.6 / Z : 1.6 | |
| Grinding wheel motor (kw) | Y: 4.0 (5HP) Z: 4.0 (5HP) |
Y: 2.2 (3HP) Z: 2.2 (3HP) |
Y: 5.5 (7.5HP) Z: 3.7 (5HP) |
Y: 5.5 (7.5HP) Z: 3.7 (5HP) |
|
| Spindle Motor | Spindle motor | 2.2 (3HP) | 2.2 (3HP) | 2.2 (3HP) | 2.2 (3HP) |
| Others | Automatic lubricator | 4 L | 4 L | 4 L | 4 L |
| Machine dimension [LxWxH] -including accessories |
3450 x 2150 x1900 mm | 3450 x 2350 x1950 mm | 3450 x 2350 x2055 mm | 3450 x 2350 x2055 mm | |
| Machine Weight | 4750 kg | 5000 kg | 5300 kg | 5000 kg | |
Standard Accessories Matrix
| STANDARD ACCESSORIES | KG-500 | KG-500L | KG-500LE | KG-400IE |
|---|---|---|---|---|
| CNC Controller | ● | ● | ● | ● |
| Inverter for X-axis workhead motor | ● | ● | ● | ● |
| Inverter for Y-axis grinding spindle motor | ● | ● | ● | ● |
| Inverter for Z-axis grinding spindle motor | ● | ● | ● | ● |
| Y-axis grinding spindle | ● | ● | ● | ● |
| Z-axis grinding spindle | ● | ● | ● | ● |
| Hydraulic chuck | ● | ● | ● | ● |
| Hydraulic cylinder | ● | ● | ● | ● |
| Tricolor alarm lamp | ● | ● | ● | ● |
| Working lamp | ● | ● | ● | ● |
| Tool box | ● | ● | ● | ● |
| Automatic lubricator | ● | ● | ● | ● |
| Coolant tank and pump | ● | ● | ● | ● |
| Paper filter | ● | ● | ● | ● |
| Magnetic separator | ● | ● | ● | ● |
| Hydraulic tank with pump | ● | ● | ● | ● |
| Internal heat radiation system inside cabinet | ● | ● | ● | ● |
| Diamond dresser | ● | ● | ● | ● |
| Leveling bolts and pads | ● | ● | ● | ● |
| Mechanical, electrical operation manuals | ● | ● | ● | ● |
| Fully-enclosed cover | ● | ● | ● | ● |
