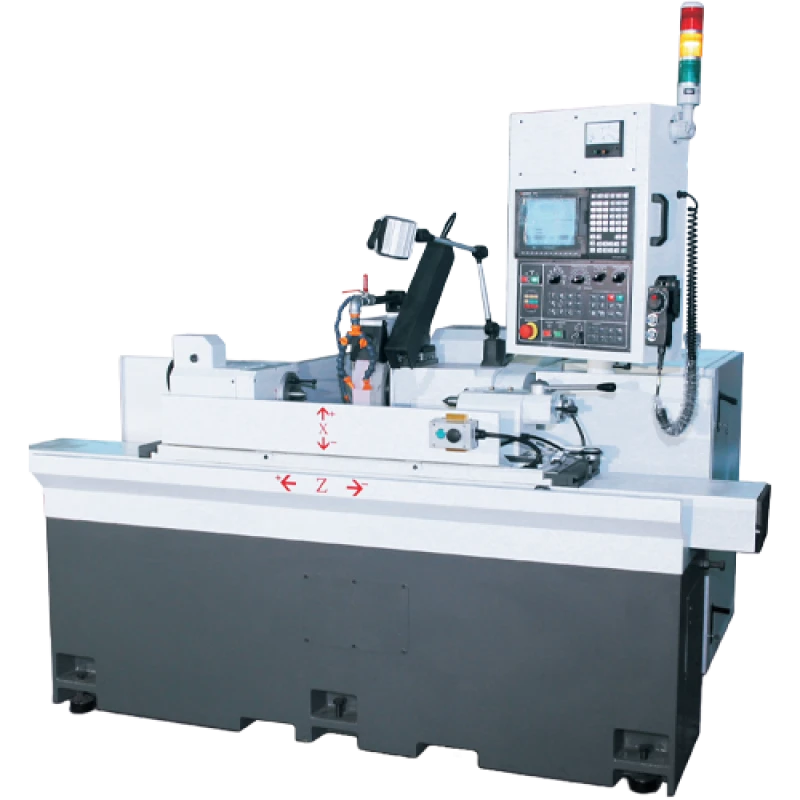

CNC OD Grinding Machine GA27 & Cylindrical Grinder
Accessories
Hydrodynamic spindleThe grinding wheel spindle of this CNC OD grinding machine is made of high-grade alloy steel (SNCM220) by precision machining, including multiple heat treatments, grinding, polishing, etc. for enhanced durability. The spindle is supported by a unique hydrodynamic bearing to provide excellent rigidity and shock resistance. (End measuring device is optional.)
Rotary center / Fixed center head stock The simple and stable head stock is equipped with high-precision bearing, which greatly improves the rigidity and rotation precision of the spindle. Excellent waterproof ability enhances the durability of the machine.
Manual/Hydraulic tailstock The oil-filled type lubrication system of tailstock consolidates the waterproof and dust-proof abilities, and ensures the high-precision of tailstock.
CNC Control SystemIt is equipped with advanced CNC controller and form-filling type operation interface, and has editable standard grinding cycle program. It can also customize the dressing shape for special grinding request. It is easy to learn and understand.
Structure
| ITEM | 400 | 600 | 800 |
|---|---|---|---|
| A | 1700 | 2100 | 2500 |
| B | 590 | 610 | 630 |
| C | 630 | 650 | 670 |
| D | 2920 | 3360 | 3800 |
| E | 355 | 555 | 755 |
| F | 495 | 695 | 895 |
Specifications
| MODLE | GP27-250CNC | GP27-450CNC | GP27-650CNC | ||
|---|---|---|---|---|---|
| Working Capacity |
Maximum grinding diameter | mm | 270 | ||
| Distance between centers | mm | 250 | 450 | 650 | |
| Distance from spindle hole center to the slide | mm | 136 | |||
| Maximum workpiece weight | kgs | 120 | |||
| Grinding wheel |
Grinding wheel size | mm | Ψ405×32 ~ 50×Ψ152.4 (opt.Ψ455×50 ~ 80×Ψ152.4) | ||
| Rotating speed of grinding wheel spindle | rpm | 1650 (1890) | |||
| Maximum peripheral speed | m/sec | 35 (45) m/sec | |||
| Wheel head |
Feed angle | deg | GP = 90, GA = 60 | ||
| Maximum feed rate | mm | 6m/min | |||
| Minimum setting unit | mm | 0.001 | |||
| Total stroke | mm | 250 | |||
| Head stock |
Spindle speed | rpm | 10 ~ 600 | ||
| Center taper | MT | MT4 | |||
| Spindle through hole diameter | mm | 25 | |||
| Tailstock | Sleeve stroke | mm | 30 | ||
| Center taper | MT | MT4 | |||
| Worktable | Swivel angle | deg | -8 ~ +11 | -6 ~ +9 | -4 ~ +7 |
| Rapid traverse speed | mm | 6m/min | |||
| Minimum setting unit | mm | 0.001 | |||
| Motor | Grinding wheel spindle motor | hp | 5 (7.5) | ||
| Head stock motor | kw | 1.0 (1.5) | |||
| Hydraulic motor for grinding wheel spindle | hp | 1/8 | |||
| Coolant pump motor | hp | 1/4 | |||
| X-axis feed servo motor | kw | 1.0 (1.2) | |||
| Z-axis feed servo motor | kw | 1.5 (1.8) | 1.5 (1.8) | 1.5 (1.8) | |
| Control system | MITSUBISHI (FANUC) | ||||
| Net weight (approx.) | kgs | 2600 | 3000 | 3400 | |
| Gross weight (approx.) | kgs | 2800 | 3200 | 3600 | |
| Packing size(L*W*H) | mm | 2400×1900×2000 | 2800×1900×2000 | 3200×1900×2000 | |
*We reserve the right to modify any machine specifications without prior notice.
Accessories
Standard accessories
- Grinding wheel and flange * 1 set
- Grinding wheel dismounting device * 1
- Diamond dresser * 1 set
- Toolbox * 1 set
- Workpiece drive ring * 1 set
- Balancing stand and arbor * 1 set
- MT4 center * 2 pieces
- Heat exchanger in electric box
- Standard water tank and pump
- Grinding wheel inverter
- Gap elimination anti-collision device
- Quartz work lamp
Optional accessories
- X-axis digital readout
- Z-axis digital readout
- Outer diameter measuring device
- Automatic grinding wheel balancer
- Hydraulic tailstock
- Manual 3-jaw chuck
- Hydraulic 3-jaw chuck
- Oil mist collector
- Magnetic separator
- Paper filter
- Air conditioner in electric box
- 2-point center rack
- 3-point center rack
- Workpiece support rack
- Grinding wheel suspending rack
- Grinding wheel hanger
