KG-410SR
KG-410SR
KG-410SR
KG-410SR

KG-410SR

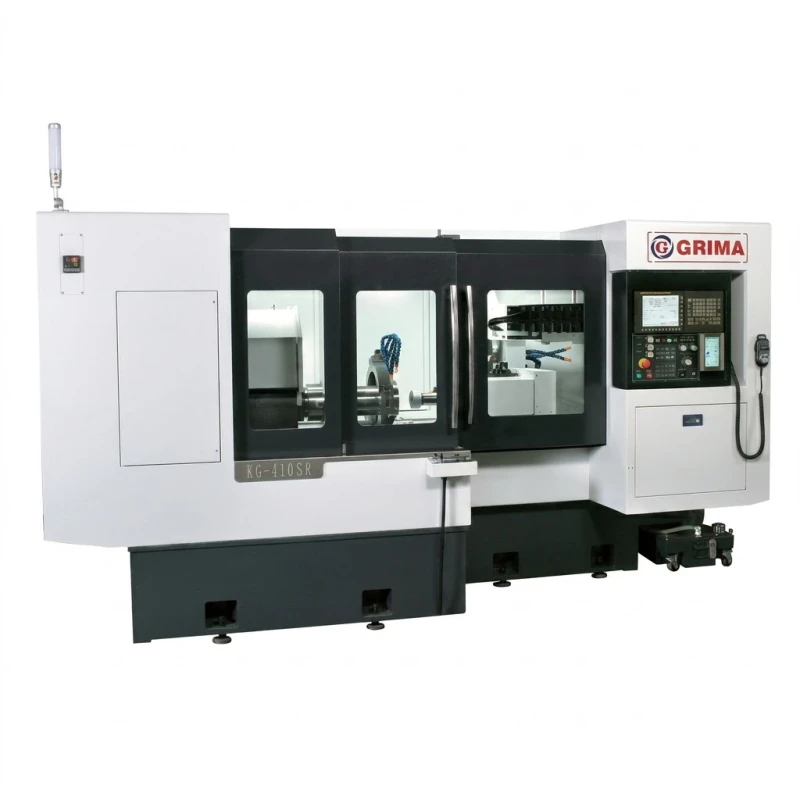

Dual grinding spindle + steady rest
Max grinding length up to 410mm
Full splash guard
Fanuc controller
X, Z axis stroke 650/550mm
Add to Inquiry

Specifications

Specifications

Specifications

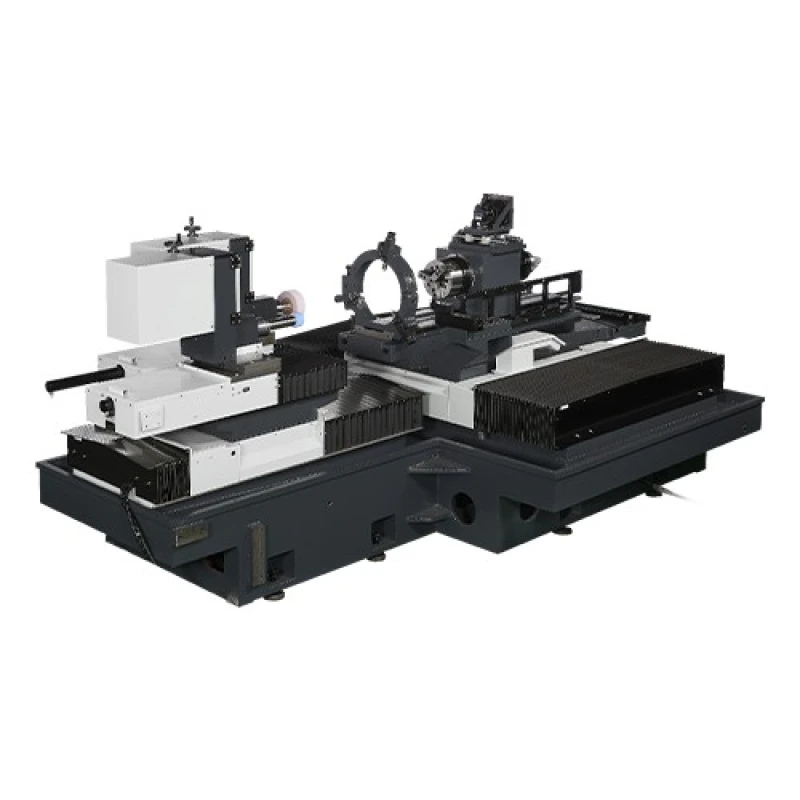

Structural Features

X axis

Wide span design with rigid roller type linear way. Four linear ways with 12 blocks to make sure axial rigidity and stability.

Z axis

With 1 V 1 Flat box way design and non-stop oil supplying system for rails to make sure grinding straightness and lower friction coefficient during movement.

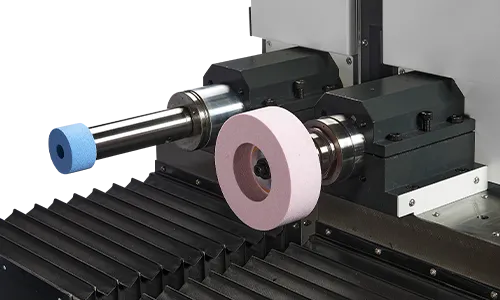

Spindle

A2-6 Sleeve type rigid spindle, offering superior stability and precision for complex internal grinding operations.

Air floating sliding way

Easy to move workhead upon length of workpieces. Sliding way angle 0°~15° for flexible setup and adjustment.

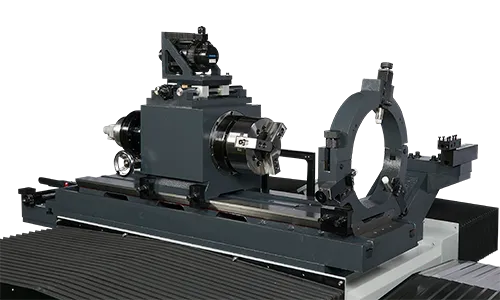

Steady rest

Specially designed for long workpieces; provides essential support and stability during the grinding process to maintain high accuracy and finish quality.

Structure

With ATC

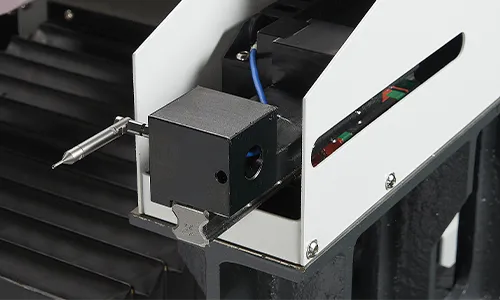

Without ATC
Without ATC
Without ATC

Spindle

With ATC
Without ATC
Without ATC

Specifications

Machine Specifications

KG-350SR KG-410SR KG-600SR
Working
Capacity		 Grinding dia. range Ø 4 ~ Ø 320 mm Ø 4 ~ Ø 320 mm Ø 4 ~ Ø 320 mm
Max. grinding depth 350 mm 410 mm 400 mm
Controller
System		 Controller FANUC 0i-TF FANUC FANUC
Workhead Spindle speed 0 ~ 1000 rpm 0 ~ 1000 rpm 0 ~ 1000 rpm
X-axis feed rate/ max. stroke 8 M/min / 500 mm 8 M/min / 650 mm 8 M/min / 800 mm
X-axis minimum display unit 0.0001 mm 0.0001 mm 0.0001 mm
Swiveling angle 0° ~ +15° -5° ~ +15° 0° ~ +10°
Worktable Y-axis & Z-axis feed rate Z : 6 M/min Z : 6 M/min 10/10 M/min
Y-axis & Z-axis max. stroke Z : 700 mm Z : 550 mm 450+200 / 450+200 mm
Y-axis & Z-axis minimum display unit Z : 0.0001 mm Z : 0.0001 mm 0.0001 / 0.0001 mm
Y-axis swiveling angle - - 0° ~ +10°
Distance from spindle center to the ground 1100 mm 1070 mm 1100 mm
Swing of working Table Ø 380 mm Ø 380 mm Ø 380 mm
Hydraulic
System		 Oil Tank Capacity 30 L 40 L 30 L
Cooling
System		 Coolant Tank Capacity 400 L 400 L 380 L
Motor Hydraulic motor 0.75 Kw (1HP) 1.5 Kw (2HP) 0.75 Kw (1HP)
Coolant pump motor 0.75 Kw (1HP) 0.37 Kw (1/2HP) Machine : 0.37 Kw (1/2HP)
Base : 0.37 Kw (1/2HP)
X-axis & Y-axis & Z-axis servomotor X : 2.5 Kw / Z : 2.5 Kw X : 2.5 Kw / Z : 2.5 Kw X : 2.5 Kw / Y : 2.5 Kw / Z : 2.5 Kw
Grinding wheel motor (kw) Z : 4.0 (5HP) Z : 2.2 (3HP) Y : 4.0 (5HP)
Workhead motor -
1.8Kw(Brushless Servo)		 Z2 : 2.2 (3HP)
1.8Kw(Brushless Servo)		 Z : 4.0 (5HP)
1.8 Kw (Brushless Servo)
Others Automatic lubricator - 4 L 4 L
Machine dimension [LxWxH]
-including accessories		 4300 x 2500 x2050 mm 4200 x 3100 x2100 mm 3500 x 3150 x1960 mm
Machine Weight 7500 kg 8000 kg 8300 kg

Standard Accessories Matrix

STANDARD ACCESSORIES KG-350SR KG-410SR KG-600SR
CNC Controller ● ● ●
Inverter for X-axis workhead motor ● ● ●
Inverter for Y-axis grinding spindle motor - - ●
Inverter for Z-axis grinding spindle motor ● ● ●
Inverter for Z2-axis grinding spindle motor - ● -
Y-axis grinding spindle - - ●
Z-axis grinding spindle ● ● ●
Z2-axis grinding spindle - ● -
Hydraulic chuck ● ● ●
Hydraulic cylinder ● ● ●
Tricolor alarm lamp ● ● ●
Working lamp ● ● ●
Tool box ● ● ●
Automatic lubricator ● ● ●
Coolant tank and pump ● ● ●
Paper filter ● ● ●
Magnetic separator ● ● ●
Hydraulic tank and pump ● ● ●
Internal heat radiation system inside cabinet ● ● ●
Diamond Dresser ● ● ●
Foundation bolts and blocks ● ● ●
Mechanical, electrical operation manuals ● ● ●
Fully-enclosed cover ● ● ●
Semi-enclosed cover - - -
