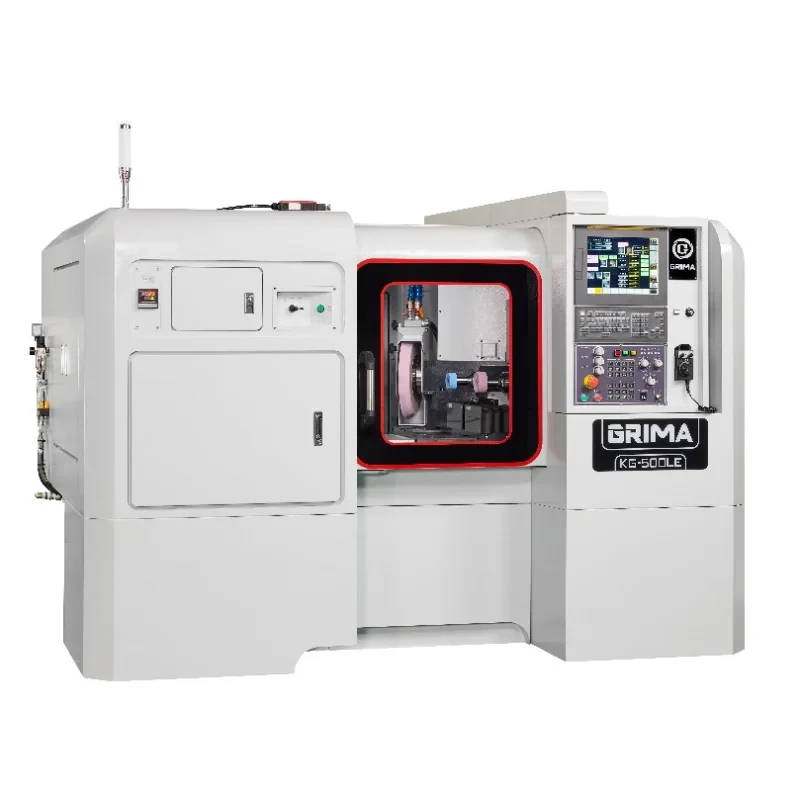

KG-500LE
KG-500LE
KG-500LE
KG-500LE

KG-500LE

Dual grinding spindle
Full splash guard
Fanuc controller
X, Y, Z axis stroke: 750/320+150/320+200mm
Add to Inquiry

Specifications

Specifications

Video

Specifications

This model is equipped with OD grinding wheel 405mm and ID grinding spindle, which guarantee to significantly increase grinding efficiency and accuracy of multiple faces workpieces.

SPINDLE SYSTEM STANDARD

With high rigidity A2-6 taper spindle. This spindle provides excellent radial rigidity, stable thermal, minimum heat deformation, and high dynamic accuracy to guarantee absolutely grinding quality.

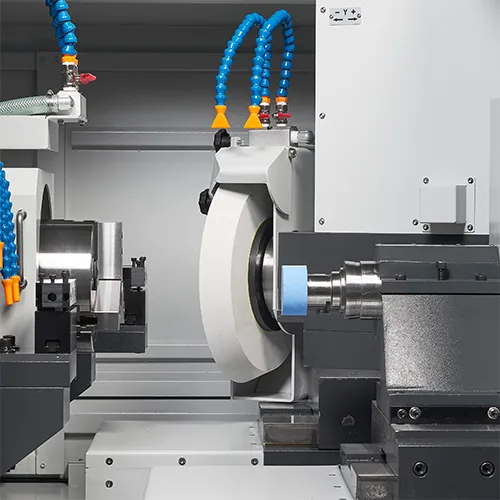

AXIS CONFIGURATION STANDARD
  • Y axis: Applies to sleeve type rigid grinding spindle with Ø405mm grinding wheel (wheel angle 25°)
  • Z axis: Applies to BELT type grinding spindle
BUILT-IN SYSTEM OPTIONAL
  • Y axis: Sleeve type rigid grinding spindle (Ø405mm / 25°)
  • Z axis: Applies to BUILT-IN type grinding spindle
  • Z2 axis: Applies to BUILT-IN type grinding spindle

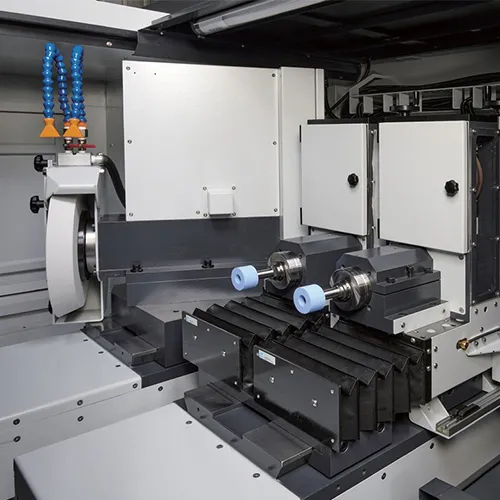

DUAL BELT SYSTEM OPTIONAL
  • Y axis: Sleeve type rigid grinding spindle (Ø405mm / 25°)
  • Z axis: Applies to BELT type grinding spindle
  • Z2 axis: Applies to BELT type grinding spindle

Independent Choice of Z Axis and Z2 Axis

Free to apply various grinding wheel upon workpieces, which is a perfect choice for high accuracy and complicated workpieces.

Possible to have lathe module, which allows to decrease stock removal quickly for time and wheel saving.

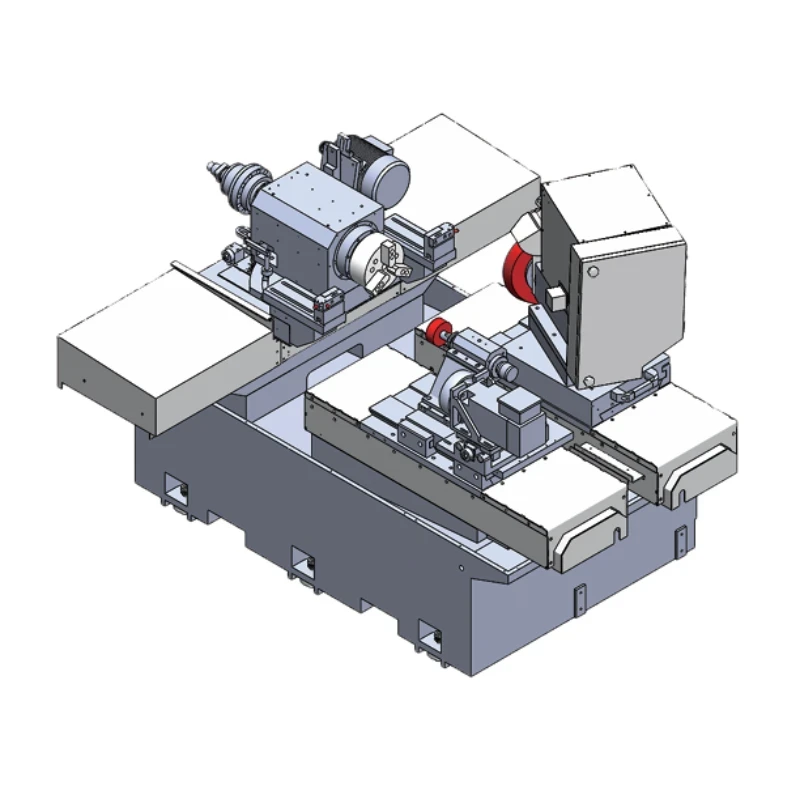

Structure

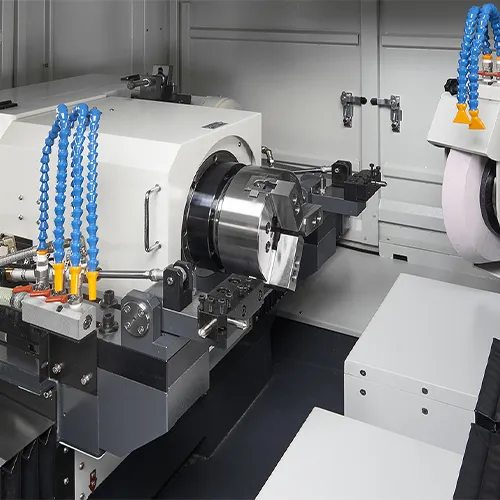

Without ATC
Without ATC

OPTIONAL

Without ATC

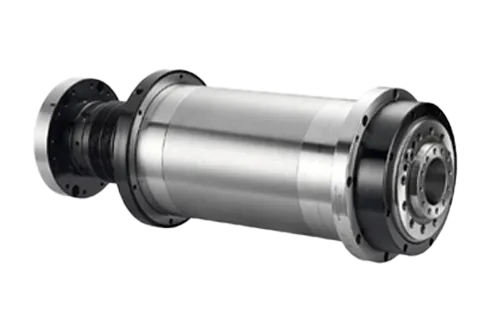

Spindle

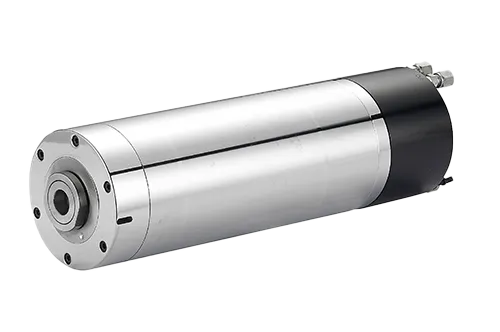

With ATC
Without ATC
With ATC
Without ATC
Without ATC

Specifications

Machine Specifications

KG-500 KG-500L KG-500LE KG-400IE
Working
Capacity		 Grinding dia. range Ø 4 ~ Ø 320 mm Ø 4 ~ Ø 320 mm Ø 4 ~ Ø 320 mm Ø 4 ~ Ø 320 mm
Max. grinding depth 200 mm 200 mm 200 mm 200 mm
Max. swing range of workpiece Ø 450 mm Ø 500 mm Ø 480 mm Ø 400 mm
Swing range within the water proof cover Ø 300 mm Ø 300 mm Ø 300 mm Ø 300 mm
Controller
System		 Controller FANUC FANUC FANUC FANUC
Workhead Spindle speed 0 ~ 1000 rpm 0 ~ 1000 rpm 0 ~ 1000 rpm 1000 rpm
X-axis feed rate/ max. stroke 10 M/min / 400 mm 10 M/min / 750 mm 10 M/min / 750 mm 10 M/min / 390 mm
X-axis minimum display unit 0.0001 mm 0.0001 mm 0.0001 mm 0.0001 mm
Swiveling angle -5° ~ +30° -5° ~ +30° -5° ~ +30° -5° ~ +15°
Worktable Y-axis & Z-axis feed rate Y : 10 / Z : 10 M/min Y : 10 / Z : 10 M/min Y : 10 / Z : 10 M/min Y : 10 / Z : 10 M/min
Y-axis & Z-axis max. stroke Y : 350+200 / Z : 350+200 Y : 320+200 / Z : 320+200 Y : 320+150 / Z : 320+200 Y : 350+150 / Z : 350+200
Y-axis & Z-axis minimum display unit Y : 0.0001 / Z : 0.0001 Y : 0.0001 / Z : 0.0001 Y : 0.0001 / Z : 0.0001 Y : 0.0001 / Z : 0.0001
Distance from spindle center to the ground 1100 mm 1100 mm 1100 mm 1100 mm
Hydraulic
System		 Oil Tank Capacity 30 L 30 L 30 L 30 L
Cooling
System		 Coolant Tank Capacity 250 L 250 L 250 L 250 L
Motor Hydraulic motor 0.75 Kw (1HP) 0.75 Kw (1HP) 0.75 Kw (1HP) 0.75 Kw (1HP)
Coolant pump motor 0.18 Kw (1/4HP) 0.37 Kw (1/2HP) Cylindrical Wheel: 0.18 Kw (1/4HP)
Machine: 0.37 Kw (1/2HP)		 Cylindrical Wheel: 0.18 Kw (1/4HP)
Machine: 0.37 Kw (1/2HP)
X-axis & Y-axis & Z-axis servomotor X : 1.6 / Y : 1.6 / Z : 1.6 X : 1.6 / Y : 1.6 / Z : 1.6 X : 1.6 / Y : 1.6 / Z : 1.6 X : 1.6 / Y : 1.6 / Z : 1.6
Grinding wheel motor (kw) Y: 4.0 (5HP)
Z: 4.0 (5HP)		 Y: 2.2 (3HP)
Z: 2.2 (3HP)		 Y: 5.5 (7.5HP)
Z: 3.7 (5HP)		 Y: 5.5 (7.5HP)
Z: 3.7 (5HP)
Spindle Motor Spindle motor 2.2 (3HP) 2.2 (3HP) 2.2 (3HP) 2.2 (3HP)
Others Automatic lubricator 4 L 4 L 4 L 4 L
Machine dimension [LxWxH]
-including accessories		 3450 x 2150 x1900 mm 3450 x 2350 x1950 mm 3450 x 2350 x2055 mm 3450 x 2350 x2055 mm
Machine Weight 4750 kg 5000 kg 5300 kg 5000 kg

Standard Accessories Matrix

STANDARD ACCESSORIES KG-500 KG-500L KG-500LE KG-400IE
CNC Controller ● ● ● ●
Inverter for X-axis workhead motor ● ● ● ●
Inverter for Y-axis grinding spindle motor ● ● ● ●
Inverter for Z-axis grinding spindle motor ● ● ● ●
Y-axis grinding spindle ● ● ● ●
Z-axis grinding spindle ● ● ● ●
Hydraulic chuck ● ● ● ●
Hydraulic cylinder ● ● ● ●
Tricolor alarm lamp ● ● ● ●
Working lamp ● ● ● ●
Tool box ● ● ● ●
Automatic lubricator ● ● ● ●
Coolant tank and pump ● ● ● ●
Paper filter ● ● ● ●
Magnetic separator ● ● ● ●
Hydraulic tank with pump ● ● ● ●
Internal heat radiation system inside cabinet ● ● ● ●
Diamond dresser ● ● ● ●
Leveling bolts and pads ● ● ● ●
Mechanical, electrical operation manuals ● ● ● ●
Fully-enclosed cover ● ● ● ●
