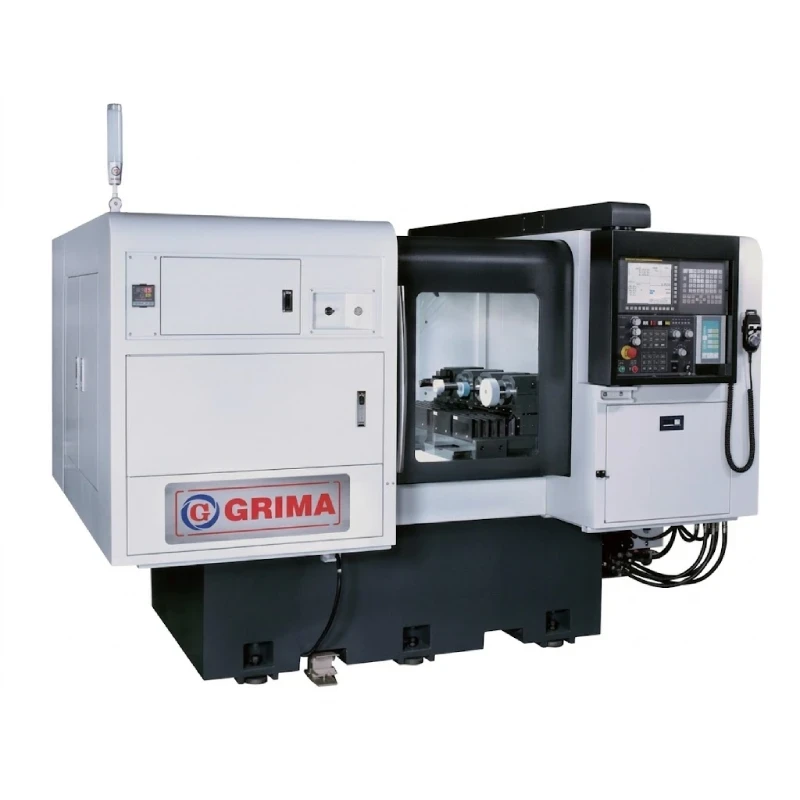

KG-500L
KG-500L
Triple grinding spindle + turning spindle (opt)
Max. grinding length: 200mm
Full splash guard
Fanuc controller
X, Y, Z axis stroke: 750 / 320+200 / 320+200mm
Max. grinding length: 200mm
Full splash guard
Fanuc controller
X, Y, Z axis stroke: 750 / 320+200 / 320+200mm
Specifications
Type A - Standard
Belt type grinding spindle
- Spindle diameter: Ø90mm
- Available to change into different speed spindle
- Equipped with Brushless servomotor to greatly increase torque and efficiency during low speed grinding
Optional Accessories
Y Axis Lathe Module
| Stroke: 180mm | ID tool holder: ø40mm |
| Driven: Hydraulic | Rail: Linear way |
Z Axis Face Grinding Attachment
| Stroke: 180mm | Spindle: Built-in (10000 rpm) |
| Power: 3 Kw | Coolant: Oil cooler |

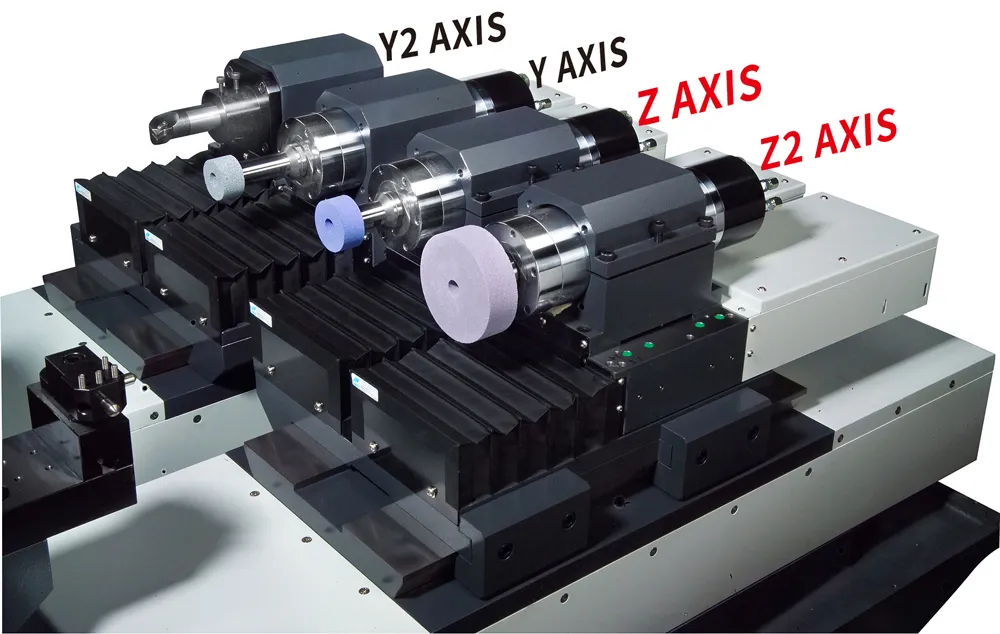

Type B - Brand New Design (Think Out Of The Box)
| Module | Y Axis | Y2 Axis | Z Axis | Z2 Axis |
|---|---|---|---|---|
| Stroke | 180 mm | 180 mm | 180 mm | 180 mm |
| Spindle Type | Built-in | Boring holder (ø40mm) | Built-in | Built-in |
| Spindle Speed | 30000 rpm | - | 6000 rpm | 20000 rpm |
| Power | 3 Kw | - | 6.0 Kw | 3 Kw |
| Coolant | Oil cooler | - | Oil cooler | Oil cooler |
| Driven / Rail | Hydraulic / Linear | Hydraulic / Linear | Hydraulic | Hydraulic |

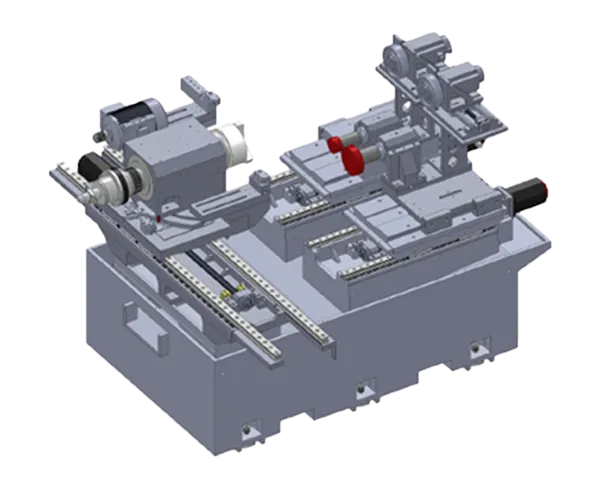

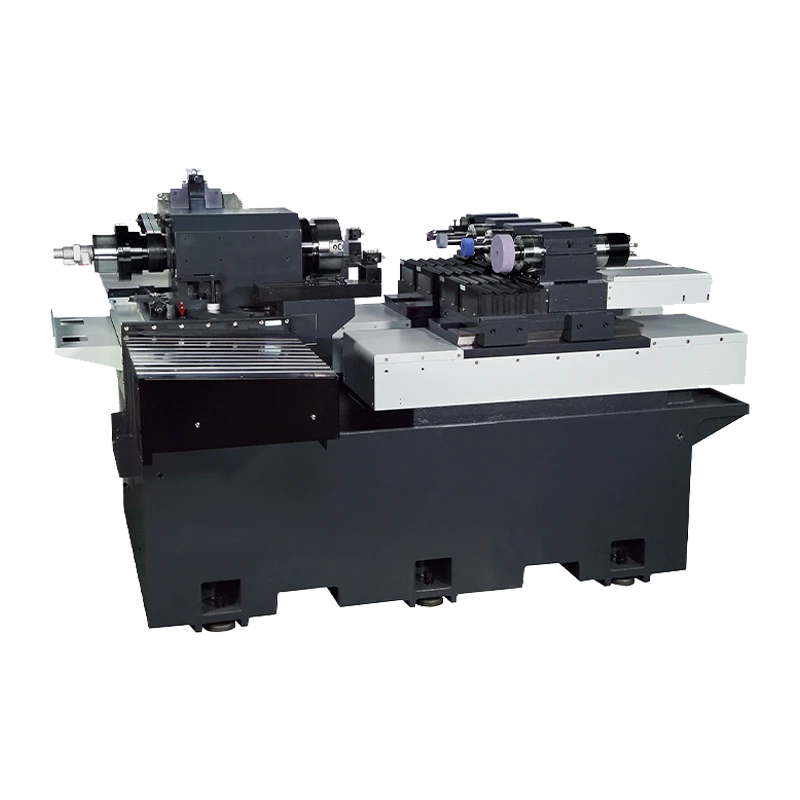

Structure
Specifications
Machine Specifications
| KG-500 | KG-500L | KG-500LE | KG-400IE | ||
|---|---|---|---|---|---|
| Working Capacity |
Grinding dia. range | Ø 4 ~ Ø 320 mm | Ø 4 ~ Ø 320 mm | Ø 4 ~ Ø 320 mm | Ø 4 ~ Ø 320 mm |
| Max. grinding depth | 200 mm | 200 mm | 200 mm | 200 mm | |
| Max. swing range of workpiece | Ø 450 mm | Ø 500 mm | Ø 480 mm | Ø 400 mm | |
| Swing range within the water proof cover | Ø 300 mm | Ø 300 mm | Ø 300 mm | Ø 300 mm | |
| Controller System |
Controller | FANUC | FANUC | FANUC | FANUC |
| Workhead | Spindle speed | 0 ~ 1000 rpm | 0 ~ 1000 rpm | 0 ~ 1000 rpm | 1000 rpm |
| X-axis feed rate/ max. stroke | 10 M/min / 400 mm | 10 M/min / 750 mm | 10 M/min / 750 mm | 10 M/min / 390 mm | |
| X-axis minimum display unit | 0.0001 mm | 0.0001 mm | 0.0001 mm | 0.0001 mm | |
| Swiveling angle | -5° ~ +30° | -5° ~ +30° | -5° ~ +30° | -5° ~ +15° | |
| Worktable | Y-axis & Z-axis feed rate | Y : 10 / Z : 10 M/min | Y : 10 / Z : 10 M/min | Y : 10 / Z : 10 M/min | Y : 10 / Z : 10 M/min |
| Y-axis & Z-axis max. stroke | Y : 350+200 / Z : 350+200 | Y : 320+200 / Z : 320+200 | Y : 320+150 / Z : 320+200 | Y : 350+150 / Z : 350+200 | |
| Y-axis & Z-axis minimum display unit | Y : 0.0001 / Z : 0.0001 | Y : 0.0001 / Z : 0.0001 | Y : 0.0001 / Z : 0.0001 | Y : 0.0001 / Z : 0.0001 | |
| Distance from spindle center to the ground | 1100 mm | 1100 mm | 1100 mm | 1100 mm | |
| Hydraulic System |
Oil Tank Capacity | 30 L | 30 L | 30 L | 30 L |
| Cooling System |
Coolant Tank Capacity | 250 L | 250 L | 250 L | 250 L |
| Motor | Hydraulic motor | 0.75 Kw (1HP) | 0.75 Kw (1HP) | 0.75 Kw (1HP) | 0.75 Kw (1HP) |
| Coolant pump motor | 0.18 Kw (1/4HP) | 0.37 Kw (1/2HP) | Cylindrical Wheel: 0.18 Kw (1/4HP) Machine: 0.37 Kw (1/2HP) |
Cylindrical Wheel: 0.18 Kw (1/4HP) Machine: 0.37 Kw (1/2HP) |
|
| X-axis & Y-axis & Z-axis servomotor | X : 1.6 / Y : 1.6 / Z : 1.6 | X : 1.6 / Y : 1.6 / Z : 1.6 | X : 1.6 / Y : 1.6 / Z : 1.6 | X : 1.6 / Y : 1.6 / Z : 1.6 | |
| Grinding wheel motor (kw) | Y: 4.0 (5HP) Z: 4.0 (5HP) |
Y: 2.2 (3HP) Z: 2.2 (3HP) |
Y: 5.5 (7.5HP) Z: 3.7 (5HP) |
Y: 5.5 (7.5HP) Z: 3.7 (5HP) |
|
| Spindle Motor | Spindle motor | 2.2 (3HP) | 2.2 (3HP) | 2.2 (3HP) | 2.2 (3HP) |
| Others | Automatic lubricator | 4 L | 4 L | 4 L | 4 L |
| Machine dimension [LxWxH] -including accessories |
3450 x 2150 x1900 mm | 3450 x 2350 x1950 mm | 3450 x 2350 x2055 mm | 3450 x 2350 x2055 mm | |
| Machine Weight | 4750 kg | 5000 kg | 5300 kg | 5000 kg | |
Standard Accessories Matrix
| STANDARD ACCESSORIES | KG-500 | KG-500L | KG-500LE | KG-400IE |
|---|---|---|---|---|
| CNC Controller | ● | ● | ● | ● |
| Inverter for X-axis workhead motor | ● | ● | ● | ● |
| Inverter for Y-axis grinding spindle motor | ● | ● | ● | ● |
| Inverter for Z-axis grinding spindle motor | ● | ● | ● | ● |
| Y-axis grinding spindle | ● | ● | ● | ● |
| Z-axis grinding spindle | ● | ● | ● | ● |
| Hydraulic chuck | ● | ● | ● | ● |
| Hydraulic cylinder | ● | ● | ● | ● |
| Tricolor alarm lamp | ● | ● | ● | ● |
| Working lamp | ● | ● | ● | ● |
| Tool box | ● | ● | ● | ● |
| Automatic lubricator | ● | ● | ● | ● |
| Coolant tank and pump | ● | ● | ● | ● |
| Paper filter | ● | ● | ● | ● |
| Magnetic separator | ● | ● | ● | ● |
| Hydraulic tank with pump | ● | ● | ● | ● |
| Internal heat radiation system inside cabinet | ● | ● | ● | ● |
| Diamond dresser | ● | ● | ● | ● |
| Leveling bolts and pads | ● | ● | ● | ● |
| Mechanical, electrical operation manuals | ● | ● | ● | ● |
| Fully-enclosed cover | ● | ● | ● | ● |
